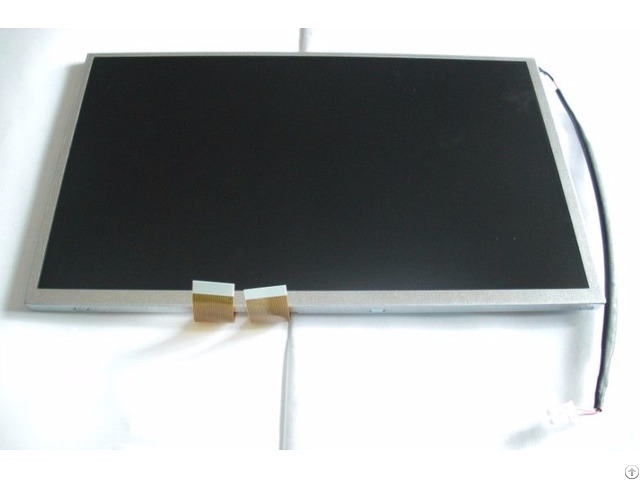

Original Innolux 10 2 800 480 Tft Lcd Module At102tn03 V 8 - China

Productor Innolux

MODEL AT102TN03 -V.

8

Size 10.2"

Resolution 800*480

Resolution Name WVGA

Display scale 15: 9

Pixel Arrangement RGB

Pixel Pitch 0.0925*0.2760 mm

Panel Composition LCD, Technology a-Si TFT-LCD

Display mode TN, nw, Transmissive

Luminance 350 nits

Contrast Ratio 300: 1

Color 262K

Color Saturation 50%NTSC(CIE1931)

Response 15/20 (Tr/Td) ms

Viewing Angle 45/65/65/65

The Best View 6 o'clock

White Field Chroma X: 0.310; Y: 0.330

White Field Dynamic 1.33 (9 points)

Scanning Frequency 60Hz

The kind of Singnal Parallel

Interface TTL

Singnal Interface Definition BLE-2PINS-AC

Drive-screen voltage 3.3/9.2/16/-7V (VCC/AVDD/AVDD/VGL)

Input Current 4/25/0.3/0.2mA (ICC/IAVDD/IGH/IGL)

Brand of Singnal Interface JST

Pitch of Singnal Interface 3.5 mm

Quantity of Singnal Interface 2 pcs

Pin of Singnal Interface 2 pins

Operation Temperature -30 °C ~ 85 °C

Storage Temperature -30°C ~ 85°C

Active Area 222.0*132.48 mm

Display Area 225.3*135.7

Outline 235.00* 145.80*6.10 mm

Touch Panel NO
