Outdoor P10 Smd Perimeter Fence Led Display For Football Stadium - China

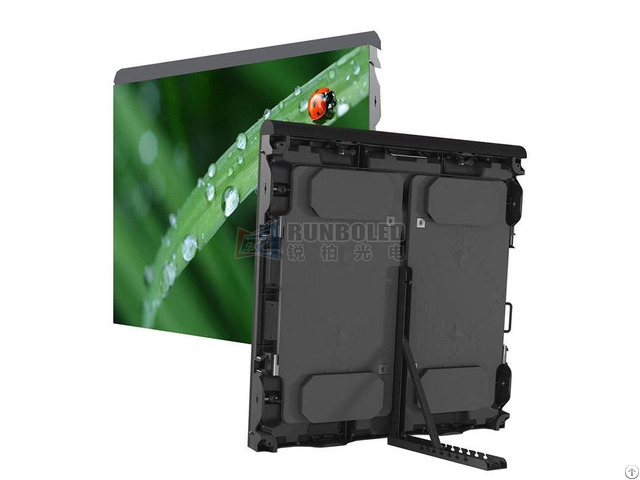

Outdoor P10 SMD Perimeter Fence LED Display for Football Stadium

Stadium Sport LED Display Fence led display, will be gathering together as a linear in the stadium.

Normally, it will covered with three sides to show commercial billboard.

Caused if it’s special usage application, it will need to do the dual backup for it’s signal.

Features of our outdoor football digital led wall:

1 - From the top of the perimeter cabinet, it covers with rubber foam, which can protect the athlete from hurting.

2 - For the cabinet, it can be supply with different raw material, including Iron & aluminum cabinet with 1280x1280mm or 1280x960mm or 960x960mm cabinet size, magnesium alloy aluminum cabinet with 960x960mm to meet the customers’ budget and led display working environment.

3 - For the front side of the led modules, it covers with soft mask, which can protect the led lamp not to broke and the athlete not to get hurt.

4 - For the bottom of the back side, it has stand brackets to support the cabinets with different angle adjustable to show the led billboard to the audiences and fans.

5 - High contrast, high refresh rate without scanning lines, good for the HD Camera to do the live broadcasting.

6 - High waterproof with IP65 and high brightness up to 6500nits-7000nits to ensure the clear pictures even under the sunshine day.

7 - Supper light weight with about 35kg/sqm for a cabinet, both function for a cabinet for sport perimeter led events and for a rental stage events sometimes.

8 - Meet the EUFA/FIFA standard

Specification of Stadium Fence LED Wall:

Parameter Technical of IP65 Waterproof P10 Outdoor Perimeter LED Advertising

Item Model Parameter

LED Module Info.

Pixel Pitch P10 Outdoor LED Rental or Fixed Install LED Lamp SMD3535 IC Driver MBI5124/MBI5051B LED Module Size 320*160mm LED Module Resolution 32*16dots Color Temperature 3000-9000K Drive Mode 1/2 scan Mask Soft Mask

LED Cabinet Info.

Cabinet Size 960*960*120mm Cabinet Resolution 96*96dots Cabinet Material Magnesium Alloy Aluminum Cabinet LED Module Quantities 3*6=18pcs Cabinet Net Weight 35kg/pc IP Grade Waterproof IP65 Rubber Foam Yes

LED Display Info.

Best Viewing Distance 10m-100m Viewing Angle H: 140°/ V: 120° Pixel Density 10000dots/㎡ Brightness 6500nits Max.

Power Consumption 956W/㎡ Ave.

Power Consumption 430W/㎡ Refresh Rate 1920Hz-3840H, can be adjusted

Control System Info.

Operating System WIN98/2000/NT/XP Control Method Synchronous display with control PC by DVI or Asynchronous with Wifi/4G/USB Control System Linsn, Nova-star, Colorlight or as you required Display Content Video, DVD, VCD, TV, picture, cartoon, graphics, texts.

etc.

Frame Frequency 50Hz or 60Hz Transmission Distance Multi mode fiber <500m, single mode fiber <30km, internet cable<100m

Operation Info.

Working Temperature -20℃--+60℃ Storage Temperature -30℃--+80℃ Input Voltage AC110V/AC220V Humidity Environment 10%-95% Lifespan 100, 000hours MTBF 10, 000hours Certificate CE, CCC, FCC, ROHS, ISO9001 Tags

High Waterproof LED Display

Company Contact:

• Posted By: Shenzhen Runbo Led Co.,Ltd.

• Phone: 0755-23870558

• Address: 4th Building Baiwang Second Industrial Park Baimang Village, Xili, Nanshan, Shenzhen, shenzhen , Guandong , China

• Email:

• Website: https://www.runboledscreen.com/

• Business Description: Shenzhen Runbo Led Co.,Limited was established in 2013, is a reliable manufacturer in production, R&D, sales in China, specialized in high quality, high refresh outdoor & indoor led video visual screen, control system, video processor and so on.

  After 6 years development, we now become a leading led screen supplier in China, now our factory equipped with modern automatic assembly line, with Sony high-speed placement machine, YAMAHA high-speed SMT machine, full automatic solder paste printing machine and a group of professional production equipment, which is to keep the quality and provide the led cabinet to the customers with a short time after order confirmation.

  We have a series of full-color LED Display products, including led indoor full color led screen with P1.2/P1.5/P1.6/P1.8/P1.9/ P2/P2.5/P2.6/P2.9/P3/P3.9 1/P4/P4.8/P5/P6/P7.62/P10 and outdoor led video visual display with P3/P3.91/P4.

  /P4.81/P5/P6/ P8/P10, also including with transparent led screen with P3.91/P7.81/P10.4, tax led sign with P4/P5/P6, football stadium with P6/8P10/P12.5, Totem pole led display with P4/P5/P6/P8 for street advertising display, Indoor Poster standing led cabinet with P2/P2.5/P3, LED DJ booth, Flexible led module with P2/P2.5/P3/P4/P5 and so on.

  We here can supply all that you want.

  RUNBO LED focused on the led video wall products with professional assembling, aging test to keep the high quality before delivery to the customers.

  Therefore, all our led panel will have CE, ROHS, FCC certificates, our factory would have ISO9001/ISO2000 standard certificates.

  With these certificates, our products now export to many countries, including Malaysia, Korea, South Africa, Kenya, Nigeria, India, Cambodia, Bangladesh, Italy, Germany,Thailand, The United States, Vietnam, Chile, Peru, Spain, Argentina, Colombia, Mexico,Kuwait and so on.

  According to the led display business development, RUNBO LED now existed with sales department, engineering department, finance department, R&D department, logistics department, after-sales department, which is committed to provide a good service and good quality led panel to our customers.

  The advantages of our pantalla led:

  1 - Environmental protection.

  2 - QC to inspect the quality.

  3 - Energy-saving, low power consumption.

  4 - Real raw materials of led lamp, IC Driver, power supply to supply.

  5 - Long lifespan with 2 years warranty at least.

  6 - Safe and convenient assemble and dismantle.

  The advantages of R&D team:

  1 - Great LED engineer to research and design the led cabinets with new pixel pitch.

  2 - At least develop a new led screen during three months.

  3 - Will provide professional led media panel solution for the big project.

  The advantages of production workshop:

  1 - Obtain more than 20pcs high-speed SMT machines from Japan Sony and Yamaha.

  2 - Each steps from the LED Lamp-LED Module-LED Cabinet-LED Display will have professional workers to inspect and check and quality before delivery to the clients.

  3 - LED modules, will do aging test with 48 hours at least, led cabinets, will do aging test with 72 hours before delivery.

  For RUNBO LED, all what we done was to provide the best led billboard to our customers, which reduce the maintenance cost from the customers in the future.
