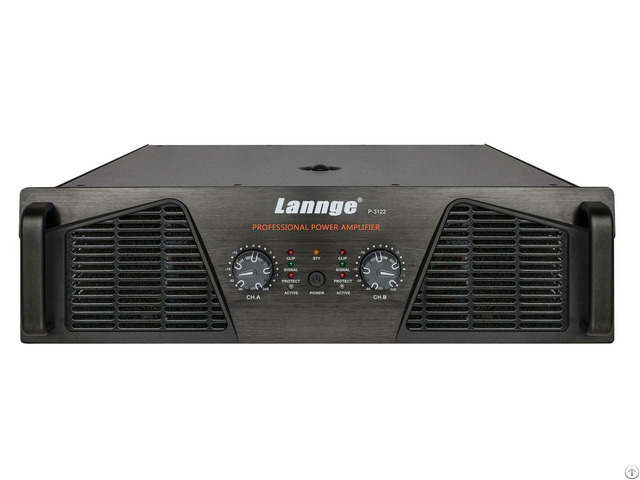

P 3122 3u Class H Professional Power Amplifier 2 1200w At 8 Honm - China

MAIN FEATURE

1 - Brushed aluminum front panel with unique streamline design.

2 - Perfect dynamic, comprehensive current limit, overload and chopped protection.

3 - Intelligent-controll ing fan for radiating

4 - Perfectly combine H technology and topology;

5 - AI insert and SMT automatical technique for strict control the consistency of the products.

6 - Adopt A class standard steel disc and fine copper high-powered toroidal transformer to achieve driving bass, mellow alto and clear treble

7 - Adopt original high-powered enthusiast Toshiba audio tube.

8 - With USA branded twin tube, circuits is optimized to perfection.

TECHNICAL SPECIFICATIONS

RNS 8Ω/STEREO：1200W+1200W

20Hz-20KHz 4Ω/STEREO：1800W+1800W

THD+N 0.1% 8Ω/BRIDGE：3600W

Frequency Response ref 20Hz-20KHz : ±0.2dB

THD+N : < 0.1%

SNR : 102dB

Damping Factor : >200

SR : >20V/μs

Gain RL 8Ω : 42dB

Input Impedance : balance 20K / unbalance 10K

Output Circuitry ：2-tier Class H

AC Power ：AC220V / 50Hz±10%

Amplifier and Load Protection ：Soft boot, DC, short circuit, over load, overheat, Clipping distortion

Input CONNECTORS ：Female XLR Type/ Male XLR Type

Output CONNECTORS ：NL4 Speakon socket, Binding post

Controls and LEDs—Front Panel：Peak clipping, Signal, A&B Volume potentiometers, DC, Protection indicator

Controls and LEDs—Rear Panel：Stereo, Splice, Bridging option switch, Bridging incicator, Sensitivity option switch, Grounding switch, 30Hz HI-PASS switch.

Cooling mode: Stepless automatic transmission cooling fan.
