P F As Interface Sensor Actuator Module Vaa 4e4a Ke1 Z E2 - Germany

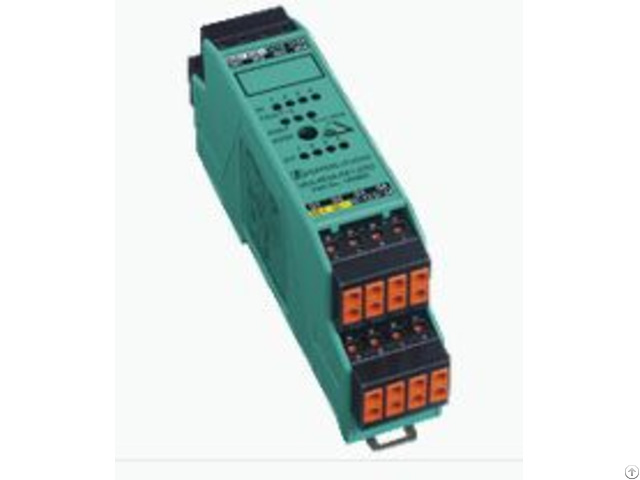

AS-Interface sensor/actuator module VAA-4E4A-KE1-Z/E2

Housing with removable terminals

Communication monitoring

Inputs for 2-wire sensors and mechanical contacts

Addressing jack

Power supply of the inputs and outputs from the external auxiliary voltage

Function display for bus, ext.

auxiliary voltage, inputs and outputs

Product Description

KE1 switch cabinet module

4 inputs and 4 outputs

General specifications

Slave type Standard slave

AS-Interface specification V3.0

Required master specification ≥ V2.0

UL File Number E87056

Functional safety related parameters

MTTFd 90 a

Mission Time (TM) 20 a

Diagnostic Coverage (DC) 0 %

Indicators/operating means

LED FAULT error display; LED red

red: communication error or address is 0

red flashing: overload of outputs

LED PWR AS-Interface voltage; LED green

LED AUX ext.

auxiliary voltage UAUX; dual LED green/red

green: voltage OK

red: reverse voltage

LED IN switching state (input); 4 LED yellow

LED OUT Switching state (output); 4 LED yellow

Electrical specifications

Auxiliary voltage (output) 20 .

30 V DC PELV

Rated operating voltage 26.5 .

31.6 V from AS-Interface

Rated operating current ≤ 40 mA

Protection class III

Surge protection UAUX, Uin: Over voltage category III, safe isolated power supplies (PELV)
