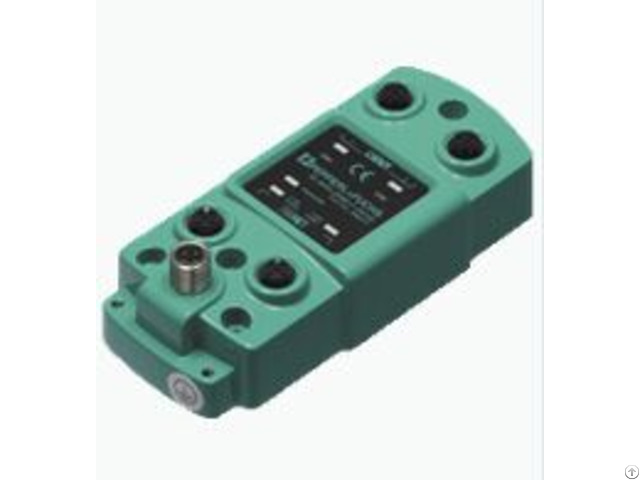

P F Control Interface Unit Ic Kp2 2hb17 2v1d - Germany

General specifications

Number of read/write heads max.

2

alternatively 1 read/write head and 1 trigger sensor

UL File Number E87056

Indicators/operating means

LEDs 1, 2 Status indicator for read/write heads

green: command at read/write head active

yellow: approx.

1 second long, if command was successfully executed

LEDs CH1, CH2 green: read head detected

red: Configuration error

LED PWR/ERR green: power on

yellow: system is starting

red: PROFINET bus failure

Rotary switch Address setting

Electrical specifications

Rated operating voltage 20 .

30 V DC, PELV

Ripple ≤ 10 % at 30 V DC

Current consumption ≤ 4 A incl.

read/write heads

Power consumption 3.5 W Without read/write heads

Electrical isolation basic insulation acc.

to DIN EN 50178, rated insulation voltage of 50 Veff

Interface 1

Physical Ethernet

Protocol SMTP

HTTP

TCP/IP (Port 10000)

MODBUS/TCP

EtherNet/IP

PROFINET IO

Interface 2

Physical Ethernet

Protocol SMTP

HTTP

MODBUS/TCP

EtherNet/IP

PROFINET IO

Transfer rate 10 MBit/s or 100 MBit/s

Compliance with standards and directives

Directive conformity

EMC Directive 2004/108/EC EN 61000-6-2: 2006, EN 61000-6-4: 2007

Standard conformity

Degree of protection IEC 60529: 2001

Ambient conditions

Ambient temperature -25 .

70 °C (-13 .

158 °F)

Storage temperature -40 .

85 °C (-40 .

185 °F)

Climatic conditions air humidity max.

96 %

Salt spray resistant to EN 60068-2-52

Shock and impact resistance Oscillation (Sine): 5 g, 10 - 1000 Hz to EN 60068-2-6
