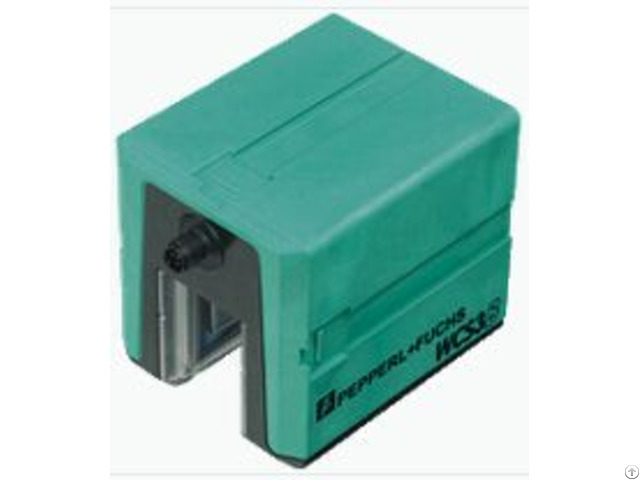

P F Germany Read Head Wcs3b Ls221 - Germany

General specifications

Passage speed ≤ 12.5 m/s

Measuring range max.

314.5 m

Free tolerances to code rail horizontal: 31 mm ( ± 15.5 mm )

vertical: 28 mm ( ± 14 mm )

Resolution ± 0.4 mm (1, 250 positions/m)

Functional safety related parameters

MTTFd 50 a

Mission Time (TM) 10 a

Diagnostic Coverage (DC) 0 %

Indicators/operating means

Operation indicator LED green: power on

Data flow indicator LED yellow: data communication active

Error indicator LED red

flashing: read head outside of code rail

solid on: internal diagnostic test failed

Electrical specifications

Operating voltage 10 .

30 V DC

Power consumption 2 VA

Interface

Interface type RS 485 interface

Data output code binary code

Protocol 1, 2

Transfer rate 62.5 kBit/s

Address 0

Termination with RS 485 termination
