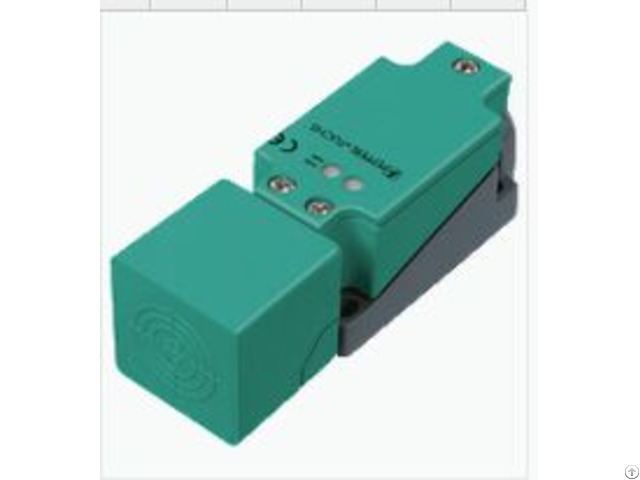

P F Inductive Rotation Speed Monitor Nj15 U1 Dw1 1 - Germany
price: contact company for price
General specifications
Switching element function PNP NO contact
Frequency range 0.1 .
1 Hz, adjustable
Rated operating distance 15 mm
Installation flush
Output polarity DC
Assured operating distance 0 .
12.15 mm
Reduction factor rAl 0.4
Reduction factor rCu 0.3
Reduction factor r304 0.85
Nominal ratings
Operating voltage 15 .
60 V DC
Reverse polarity protection reverse polarity protected
Short-circuit protection pulsing
Voltage drop ≤ 2 V
Operating current 0 .
100 mA
No-load supply current ≤ 25 mA
Switching state indicator LED 1: yellow
Damping indicator LED 2: yellow
Functional safety related parameters
MTTFd 820 a
Mission Time (TM) 20 a
Diagnostic Coverage (DC) 0 %
