P F Inductive Sensor Nbb20 L2 E0 V1 - Germany

price: contact company for price

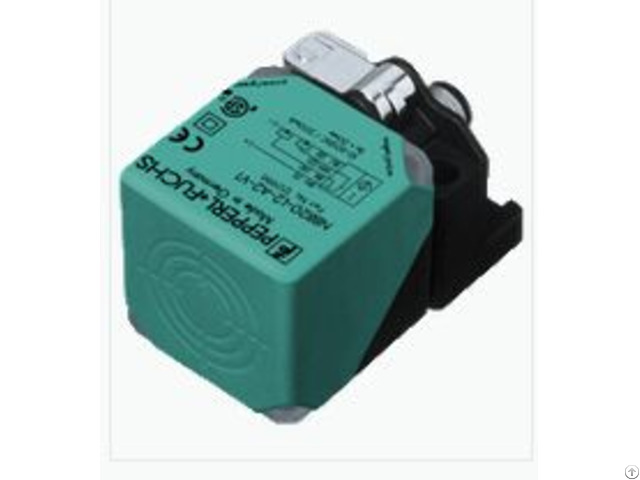

P F Inductive Sensor Nbb20 L2 E0 V1

Products Photos Catalog Inductive Sensor Nbb20 Photos Catalog

General specifications

Switching element function NPN NO

Rated operating distance 20 mm

Installation flush

Output polarity DC

Assured operating distance 0 .

16.2 mm

Actual operating distance 18 .

22 mm

Reduction factor rAl 0.33

Reduction factor rCu 0.31

Reduction factor r304 0.74

Reduction factor rBrass 0.41

Nominal ratings

Operating voltage 10 .

30 V DC

Switching frequency 0 .

150 Hz

Hysteresis typ.

5 %

Reverse polarity protection reverse polarity protected

Short-circuit protection pulsing

Voltage drop ≤ 2 V

Operating current 0 .

200 mA

Off-state current 0 .

0.5 mA

No-load supply current ≤ 20 mA

Operating voltage indicator LED, green
