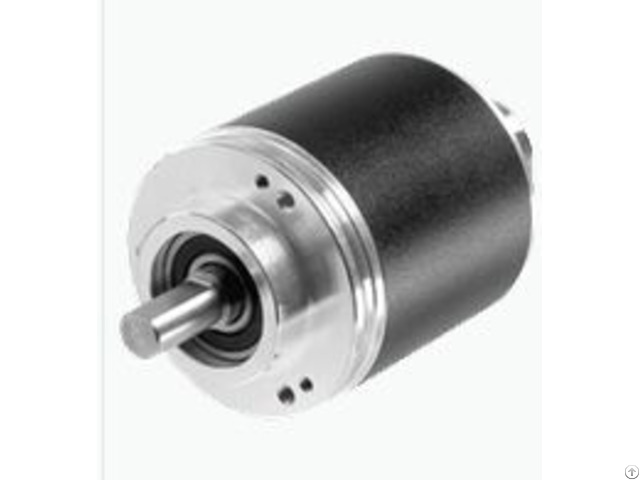

P F Multiturn Absolute Encoder Fvm58n 011k2r3bn 1213 - Germany

Functional safety related parameters

MTTFd 110 a

Mission Time (TM) 20 a

L10h 1.9 E+11 at 6000 rpm and 20/40 N axial/radial shaft load

Diagnostic Coverage (DC) 0 %

Electrical specifications

Operating voltage 10 .

30 V DC

No-load supply current max.

140 mA

Power consumption ≤ 2.5 W, without output drivers

Linearity ± 0.5 LSB

Output code Gray code, binary code

Code course (counting direction) cw ascending (clockwise rotation, code course ascending)

Code preparation time 0.3 ms

Interface

Interface type Push-pull, parallel, short-circuit protected

Resolution

Multiturn 25 Bit

Load current 20 mA

Voltage drop ≤ 2.5 V

Signal voltage

High operating voltage minus voltage drop

Low ≤ 2.8 V

Rise time 300 ns

De-energized delay 300 ns

Code change frequency 400 kHz
