P F Singleturn Absolute Encoder Fvs58 - Germany
price: contact company for price

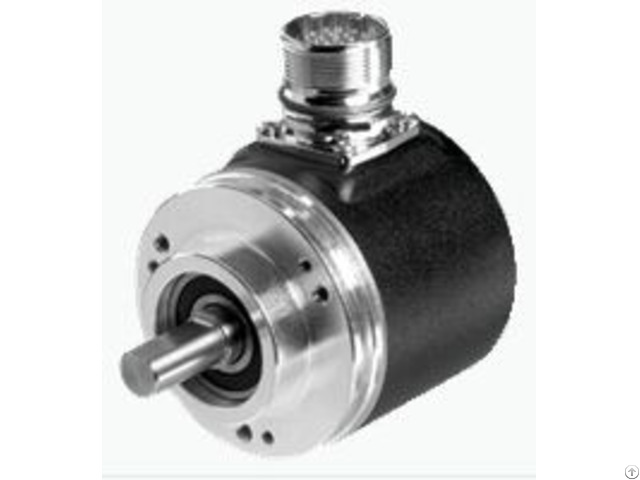

Singleturn absolute encoder FVS58
Industrial standard housing ∅58 mm
13 Bit singleturn
Output code: gray and binary
Short-circuit proof push-pull output
Inputs for selecting counting direction, LATCH, and PRESET
Code change frequency up to 400 kHz
Servo or clamping flange
Functional safety related parameters
MTTFd 120 a
Mission Time (TM) 20 a
L10h 1.9 E+11 at 6000 rpm and 20/40 N axial/radial shaft load
Diagnostic Coverage (DC) 0 %
Electrical specifications
Operating voltage 10 .
30 V DC
No-load supply current max.
140 mA
Power consumption ≤ 2 W, without output drivers
Linearity ± 0.5 LSB
Output code Gray code, binary code and Gray excess code
Company Contact:
- Posted By: Ralph Messring GmbH
- Phone: 0611 988 17088
- Address: Sonnenberger Strasse 52, Darmstadt , Wiesbaden , Germany
- Email:
- Website: http://www.ralphmessring.de
Published date: September 28, 2016
- Business Description: Our competitive brands are:
E+H, VEGA, MTL, P+F, KOBOLD, GEMU, FOXBORO(ECKARDT), GESTRA, BALLUFF, R.
STAHL, ROSEMOUNT, ControlAir, SIEMENS.
Ralph Messring GmbH specializes in global sales and distribution of industrial equipment and supplies, our products mainly focus on industrial automation and process instrumentation, e.
g pressure and temperature measurement, flow devices and automation controls components, oilfield equipment, safety products, industrial consumables and etc.
Our goal is to provide our customers with the best products and solution services, at rapid time offering reasonable and competitive price, rapid delivery and convenient order processing.
We have many reliable European Manufacturers as our partners and backup force to serve you the products you know and trust, and we have hundreds of customers at hand generate everyday large purchase demands.
What you only need is to give us a chance to serve you!
