Pa 2500 2u Class Ab Professional Power Amplifier 2 500w At 8 Honm - China
price: 1.00 Dollar US$
MAIN FEATURE
1 - Splendid color display, display the overload protection, current speed gears of fan, audio signal, voltage of AC, connection mode;

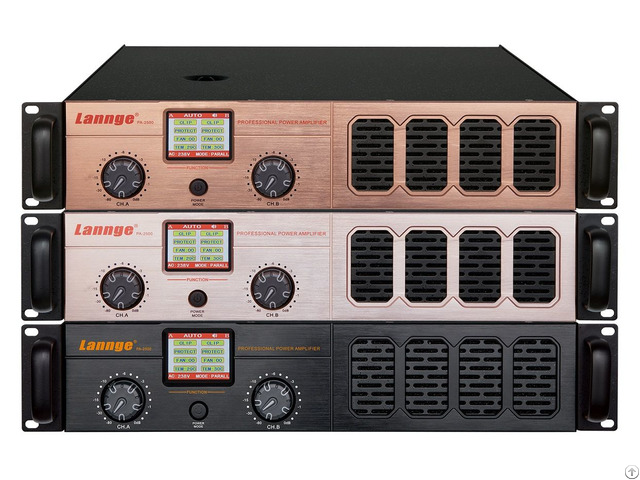

2 - Brushed aluminum front panel with unique streamline design;
3 - Perfect dynamic, comprehensive current limit, overload and chopped protection;
4 - Intelligent-controlling fan for radiating;
5 - Perfectly combine AB technology and topology;
6 - AI insert and SMT automatical technique for strict control the consistency of the products;
7 - Adopt A class standard steel disc and fine copper high-powered;toroidal transformer to achieve driving bass, mellow alto and clear treble;
8 - Adopt original high-powered enthusiast Toshiba audio tube;
9 - With USA branded twin tube, circuits is optimized to perfection;
TECHNICAL SPECIFICATIONS
RMS 8Ω/STEREO: 500W+500W
20Hz-20KHz 4Ω/STEREO: 800W+800W
THD+N 0.1% 8Ω/BRIDGE: 1600W
Frequency Response ref 1k20Hz-20KHz: ±0.2dB
THD+N : < 0.1%
SNR: 95dB
Damping Factor : >200
SR : >20V/μs
Gain RL 8Ω : 37dB
Input Impedance : balance 20K / unbalance 10K
Output Circuitry: Class AB
AC Power :AC220V / 50Hz±10%
Amplifier and Load Protection: Soft boot, DC, short circuit, over load, overheat, Clipping distortion
Input CONNECTORS: Female XLR Type/ Male XLR Type
Output CONNECTORS: NL4 Speakon socket, Binding post
Controls and LEDs—Rear Panel: Stereo, Splice, Bridging option switch, Bridging incicator, Sensitivity option switch, Grounding switch, 30Hz HI-PASS switch.
Cooling mode: Stepless automatic transmission cooling fan.
Company Contact:
- Posted By: Jiangmen Lannge Electronics Co,. Ltd
- Phone: +86-15807507101
- Address: No.1 E1,District 2,Industrial Transfer Estate, Jiangmen, Enping, Guangdong , China
- Email:
- Website: https://www.lannge.com
Published date: July 15, 2016
- Business Description: LANNGE ELECTRONICS CO., LTD. established in 2010, is a new high-technology enterprise manufacturing professional wireless microphones, processors, mixers, amplifiers, speakers etc audio products.
Our company integrates research, production, sales and service with OEM and ODM value-added services.
