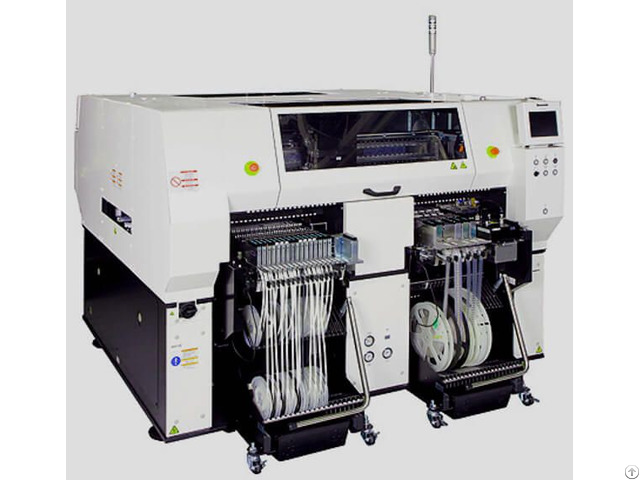

Panasonic AM100 Pick and Place Machine

Mounting Speed: 22, 000 cph

Weight: 2370 Kg

Component Range: 01005 (0402M)

Product description: Panasonic AM100 Pick and Place Machine INQUIRY

panasonic AM100 pick and place machine Products Description: Panasonic SMT AM100 Modular Placement Machine specification and feature The AM100 maintains the high standards for capability, flexibility, and reliability customers expect from Panasonic in a cost-effective, incrementally scalable, high-mix SMT solution.

Only one machine is required to get production started and it's easy to add more units and/or technologies as demands change.

Panasonic's AM100 modular placement machine features a single head (single beam) capable of placing an impressive component array including: 0402mm to 120x90x28mm, large connectors, odd-shaped components, and advanced packaging types such as PoP

Prepare the next product while production is running on the AM100 for non-stop changeover and put to use a variety of highly flexible configurations and component supply types.

Flexible setup is further enhanced in the AM100 by Feeder Anywhere and Nozzle Anywhere features.

Large boards can be processed and advanced features including a component thickness camera, auto support pin exchange, PCB warpage detection, and tray verification are also available.

Features & Benefits One head, one machine solution with a very large component range

Interchangeable feeders, multi-functional nozzles, and chucks with the CM and NPM series Cost-effective and high quality production Standard Features:

14-nozzle Highly Versatily Head

High Resolution Line Camera

Nozzle Changer

CAD Data Import Utility

Pre-defined Part Libray

Adaptive Component Pick

Auto Placement Calibration

Multi-job Production Scheduling

Auto Feeder Teach

Fiducial Teach with Auto Adjust

Virtual PCB Inspection

PoP Process Capable

NPI Software Tool Set

Specifications: Model Name (Number) AM100 (NM-EJM4D) Concept Scalable Single Gantry Hyrbrid Drive Platform

Drive System Highly Accurarate Linear Motor Hybrid Drive

Component Alignment Digital Color Line Scan Camera, Fixed Position

Head Design 14-spindle Ultra High Flex Head

Board Dimensions

510 x 460mm (20 x 18”) Standard

1, 200 x 460mm (47x18”) Optional Board Thickness up to 8mm Placement Accuracy

±40 micron Cpk ≥1.0 Chip

±30 micron Cpk ≥1.0 QFP Throughput

Ideal: 35, 800 cph

IPC9850: 22, 000 cph Component Range

Minimum: 01005 (0402M)

Maximum: 120x90mm (4.7x3.5”) & 150x25mm (6x1”)

Height: up to 28mm (1.1”)

Bumps: 0.15mm diameter, 0.3mm pitch Feeder Capacity

Reels: up to 160 reels

Tubes: up to 60 tubes

Trays: up to 40 trays Facilities

Electric: 3 Phase AC 200/220V ±10V, AC 380/400/420/480V ±20V 2.0 kVA400V 2 KVA

Pneumatic Min 0.5 MPa to Max 0.8MPa, 200 L/min (A.N.R.

)

Mass: 2370 Kg (Main Body with 4 Feeder Banks)

Dimensions: W 1, 970 x L 2, 019 x H 1, 450mm Keywords: China reflow oven, Pick and place machine factory, China chip mounter, SMT chip mounter Manufacturer, Lead Free Reflow Oven factory, wave soldering machine manufacturer, pick and place machine supplier.
