Panasonic Cm402 Machine - China

price: 200.00 Dollar US$

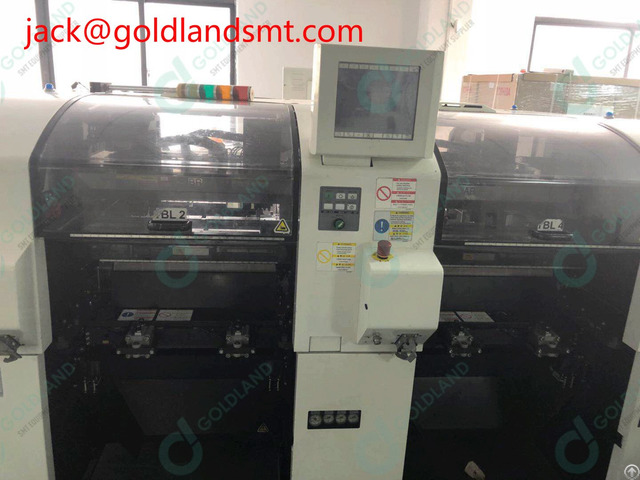

Panasonic Cm402 Machine

Products Photos Catalog Panasonic Cm402 Photos Catalog

XF-4Z4C Panasonic CM402-L pick and place machine(Serial No: 115V1231) we are china supplier, any interest contact

Model Number: KXF-4Z4C Serial Number：115V1231 Manufactured Year: 2005 Description

MODEL ID: CM402-L

MODEL NUMBER: KXF-4Z4C

PCB DIMENSIONS: L 50 mm x W 50mm to L 510 mm × W 460 mm

HEAD TYPE: Type A-2 (12/12 nozzles HIGH-SPEED) (OPTION) Number of nozzles: 12 nozzles/head Maximum speed: 0.052 s/chip (69, 500 cph) Placement accuracy: ±40um/chip Component dimensions: (01005")0402 chip to L 12mm x W12mm xT6.5mm

HEAD TYPE: 8+8 HIGH-SPEED (OPTION) Number of nozzles: 8 nozzles/head Maximum speed: 0.06 s/chip (60, 000 cph) Placement accuracy: ±50um/chip Component dimensions: 0201 (0603) C, R to L 24 mm × W 24 mm

HEAD TYPE: 8+3 MULTI FUNCTION (OPTION) Number of nozzles: 3 nozzles/head Maximum speed: 0.21 s/QFP (17, 140 cph) Placement accuracy: ±0.035 mm/QFP Component dimensions: 0402 (1005) C, R to L 100 mm × W 90 mm

PCB EXCHANGE TIME: 0.9 s (board length: up to 240 mm)

ELECTRIC SOURCE: 3-phase AC 200 V ±10 V / AC 400 V ±10 V, 2.5 kVA

PNEUMATIC SOURCE: 490 kPa, 150 L/min (standard, machine body only)

DIMENSIONS W 2, 350 mm x D 2, 690 mm x H 1, 430 mm

MASS 3, 400 kg


Company Contact:


  • Phone: +8618565748771

  • Address: shenzhen , Shenzhen , China

  • Email: Email


Published date: January 13, 2019

  • Business Description: GOLDLAND ELECTRONIC TECHNOLOGY CO., LTD focus on global Surface Mount electronic assembly sector for 10 years.

    We mainly provide competitive price and high quality products for various brands of SMT equipments, SMT feeders, SMT nozzles, SMT feeder spare parts, AI equipments, AI spare parts and other related products.

    The brands is: FUJI, KEM, PANASERT, YAMAHA, JUKI, Hitachi, Universal, Siemens, I-pulse, Assembleon, DYNAPERT, TDK and so on.
