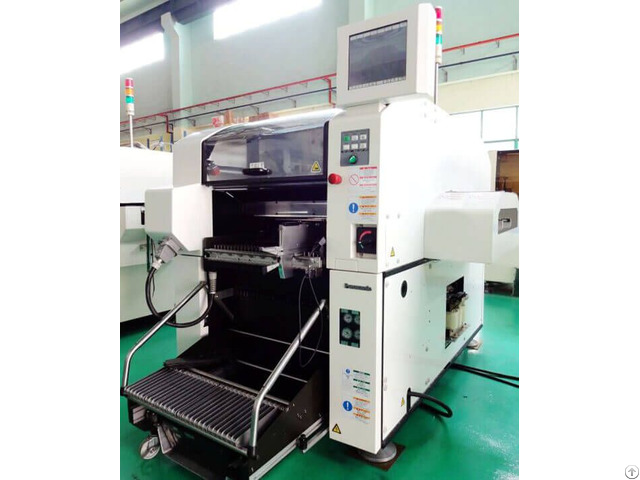

Panasonic DT401-F Pick and Place Machine

Component Size: 1005 Chip

W1260 mm x D2512mm x H1430mm

Weight: 1400KG Product description: Panasonic DT401-F Pick and Place Machine INQUIRY

panasonic DT401-F pick and place machine Products Description: Panasonic DT401-F multi-function placement machine price | The Panasonic DT401 is a direct tray modular, multi-functional placement machine that's designed to give users the flexibility to place a large number of varied, odd-shaped components at high speeds.

Direct placement head pickup allows for the wide component range, while tray feeder replenishment and a feeder collective-exchange cart delivers improved operation rates.

Can handle parts ranging from microchips to large parts such as BGAs, CSPs and connectors The DT401 handles a broad spectrum of components including 0402 chips, BGAs, CSPs, connectors and other large components up to 100 mm X 90 mm @ 25mm thickness.

To ensure such flexibility, the machine supports five kinds of tape feeders, equipped with variable feed pitch capabilities.

The DT401 uses the same feeder table and feeders as our CM402, which results in cost-savings, reduction in feeder inventory, greater flexibility and interchangeability.

Load control head supplied as standard The series of three load control heads yields a maximum load of 50 N which enables almost all insertion connectors to be mounted.

Features & Benefits Direct pickup along with on-the-fly component replenishment and changeover allows high-speed production

Supports twin and single tray feeders

8 mm double tape feeders, as well as 12/16, 24/32, 44/56 and 72 mm tape feeders

Interchangeable platform

Handles up to 510 mm L x 460 mm W boards Panasonic DT401-F multi-function placement machine Model Specifications Panasonic multi - function placement machine DT401

Model Name: DT401-M DT401-F

Model: KXF-E53C KXF-E64C

Base size: L50mm x W50mm to L330mm x W250mm L50mm x W50mm to L510mm x W460mm

Placement tempo: 0.7s / chip (tape, bulk) 0.8s / QFP (single tray) 1.2s / QFP

Mounting accuracy: + - 50um / chip cpk> 1, + -35um / QFP () Cpk> 1

Component Size: 1005 Chip - L100mm x W90mm x T25mm

Change time: 2.0s 0.9s (substrate length 240mm x or less)

Power: three-phase AC200-400v, 1.7kVA

Air source: 0.49MPa, 150L / m (A.N.R)

Equipment dimensions: W1260 mm x D2512mm x H1430mm W1260 mm x D2722mm x H1430 mm

Weight: 1400KG 1560KG

Panasonic DT401-MF To achieve a wide range of components corresponding to the ability and high-precision placement

Corresponding to the direct adsorption tray modular multi-function placement machine Panasonic multi-function placement machine DT401 Features:

1, direct adsorption tray feeder and rack a switch car, improve the rate of Jia moving.

Using direct suction adsorption

The transfer head is directly attached to the pallet components, allowing for high-speed placement of various weird shapes.

Feeding the tray Keywords: China reflow oven, Pick and place machine factory, China chip mounter, SMT chip mounter Manufacturer, Lead Free Reflow Oven factory, wave soldering machine manufacturer, pick and place machine supplier.
