Passive Magnetic Buzzer Speaker Alarm Acoustic Component Klj 9032 5027 - China

price: 0.33 Dollar US$

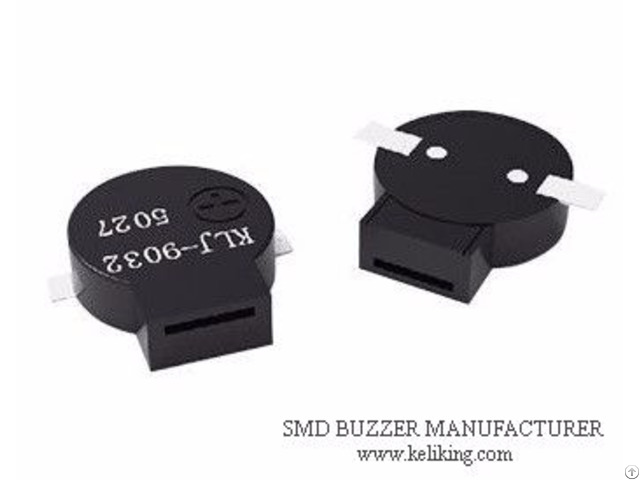

Passive Magnetic Buzzer Speaker Alarm Acoustic Component Klj 9032 5027

Products Photos Catalog Passive Magnetic Photos Catalog

Parameters of KLJ-9032-5027 Oscillation Frequency(Hz) 2731

Operating Voltage(Vp-p) 4.5-6.5

Rated Voltage(Vp-p) 5

Current Consumption(mA/max) 90 at Rated Voltage

Sound Pressure Level(dB/min) 86 at 10cm at Rated Voltage

Coil Resistance(Ω) 25±3/31±4

Operating Temperature(℃) -20~ +85

Storage Temperature(℃) -30 ~ +85

Environment Compulsory Standard ROHS

PS: Vp-p=1/2duty, square wave Rated Voltage includes: 1.5V, 3.6V, 5V Audible distance at rated vol.

L: 10m

Application: Smart electronic devices, electronic alarm clocks, car child safety seats, diaper for old people, dashboard, tire pressure testing devices, POS machine, burglar alarm for cars, mini artificial intelligence devices and more


Company Contact:


  • Phone: +86 13861009344

  • Address: No. 1-1, Dongtang Road, Sanhekou, Zhenglu, Changzhou, Changzhou , Jiangsu , China

  • Email: Email


Published date: August 7, 2017

  • Business Description: Changzhou Keliking Electronics Co., Ltd. is the full set solution supplier for micro SMT buzzer.

    Included electromagnetic buzzer and piezo buzzer.
