Passive Smd Buzzer Magnetic Klj 5025 - China

price: 0.42 Dollar US$

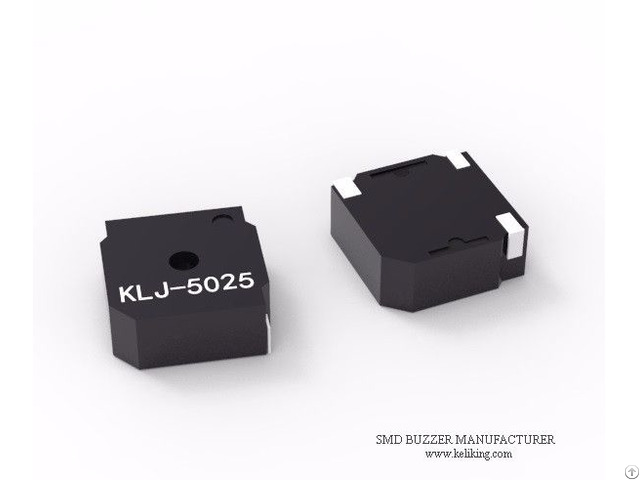

Passive Smd Buzzer Magnetic Klj 5025

Products Photos Catalog Passive Smd Buzzer Photos Catalog

Specification of KLJ-5025 SMD Magnetic Buzzer Oscillation Frequency(Hz) 4000

Operating Voltage(Vp-p) 2.0-4.0

Rated Voltage(Vp-p) 3.0

Current Consumption(mA/max) 100 at Rated Voltage

Sound Pressure Level(dB/min) 80 at 10cm at Rated Voltage

Coil Resistance(Ω) 12±3 Environment Compulsory Standard ROHS

PS: Vp-p=1/2duty, square wave Audible distance at rated vol: 1.5m

Application: Mini type smart electronic devices, such as wearable smart devices, artificial intelligence devices, medical devices, Bluetooth system devices, sports DV, smart earphones and more


Company Contact:


  • Phone: +86 13861009344

  • Address: No. 1-1, Dongtang Road, Sanhekou, Zhenglu, Changzhou, Changzhou , Jiangsu , China

  • Email: Email


Published date: August 7, 2017

  • Business Description: Changzhou Keliking Electronics Co., Ltd. is the full set solution supplier for micro SMT buzzer.

    Included electromagnetic buzzer and piezo buzzer.
