PCBA Test Probe Pogo Pin PC75 Series Applied to ICT In-circuit test probes are mainly used for testing electrical performance of in-circuit components on PCB and the connection between circuit networks.

It could quantitatively measure components such as resistors, capacitors, inductors, crystal oscillators, and perform functional tests of diodes, triodes, optocouplers, transformers, relays, operational amplifiers, power supply modules and integrated circuits.

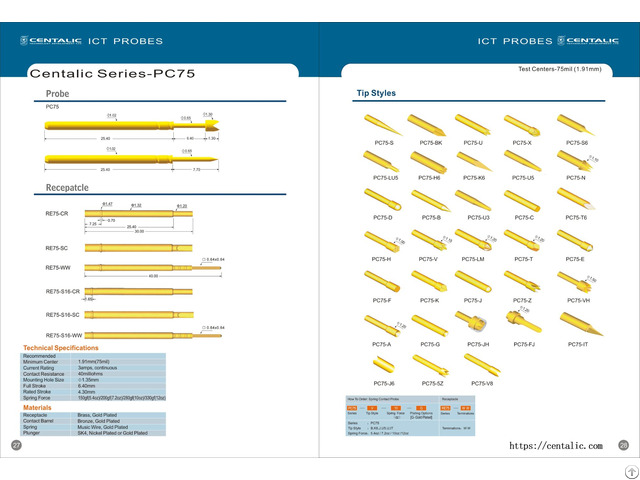

We will introduce in-circuit test probe PC75 series here.

Its test center is 75 mil.

The diameter is 1.91 mm and the total length is 33.1 mm.

Various tip styles, for example, A, B, U, H, K, L, BK, etc., are available for test probes.

There are roughly three types of receptacles, namely CR, SC and WW to fit each test probe.

For details, please check below parameters.

Technical Specifications

Recommended Minimum Center: 1.91 mm (75 mil)

Current Rating: 3 Amps, continuous

Contact Resistance: 40 milliohms

Mounting Hole Size: Diameter 1.35 mm Full Stroke: 6.4 mm

Rated Stroke: 4.3 mm

Spring Force: 150 gf (5.4 oz)/200 gf (7.2 oz)/280 (10 oz)/330 gf (12 oz) Materials

Receptacle: Brass, Gold Plated

Contact Barrel: Phosphor Bronze, Gold Plated

Spring: Music Wire, Gold Plated

Plunger: SK4, Nickel Plated or Gold Plated Company Information

Centalic Technology Development Ltd. was founded in 1980 - Specializing in R&D, manufacture, sales and technical service, Centalic is one of the earliest high-tech enterprises which concentrates on large-scale production of various test probes and precision metal parts, and has a professional manufacturing base owning complete production lines and test equipment.

Our products include semiconductor test probes, in-circuit test probes, radio frequency probes, harness probes, battery contact probes, switching probes, big-current probes, spring probes, universal complex test probes, wafer probes, and so on.

They are widely applied to the tests of various electronic products, such as in-circuit tests of semiconductor components, chips, PCB and other electronic peripherals.

Our company owns professional R&D, production, sales teams under the working principle of 'quality, punctuality, confidentiality' to totally efficiently develop test probes in accordance with the requirements of customers' test projects and meet the needs of customers for mass production as well as developing markets.

With many years' continuous endeavour of our staff, Centalic has built a solid foundation in this industry and our products have been sold all over the world.

Welcome to browse our website and download any catalogs of our products.

If you need a complete set of product manual, please feel free to contact us.

Many products are not uploaded due to a huge range.

If you can't find what you need, please feel free to contact us.
