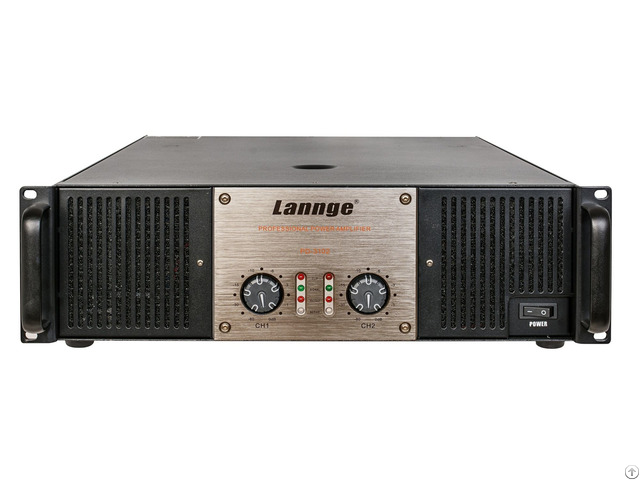

Pd 3102 3u Class H Professional Power Amplifier 2 1000w At 8 Honm - China

MAIN FEATURE

1 - Adopt high-quality aluminium alloy panel for unique apperance;

2 - Perfect dynamic, comprehensive current limit, overload and chopped protection

3 - Intelligent-controlling fan for radiating;

4 - Perfectly combine H technology and topology;

5 - AI insert and SMT automatical technique for strict control the consistency of the products;

6 - Adopt A class standard steel disc and fine copper high-powered toroidal transformer to achieve driving bass, mellow alto and clear treble;

7 - Adopt original high-powered enthusiast Toshiba audio tube;

8 - With USA branded twin tube, circuits is optimized to perfection;

9 - Suitable for large stage performances, KTV room, pubs and conference rooms etc.



TECHNICAL SPECIFICATIONS

RNS 8Ω/STEREO：1000W+1000W

20Hz-20KHz 4Ω/STEREO：1500W+1500W

THD+N 0.1% 8Ω/BRIDGE：3000W

Frequency Response 20Hz-20KHz: ±0.5dB

THD+N: < 0.1%

SNR: 95dB

Damping Factor: >200

SR : >20V/μs

Gain RL 8Ω: 41dB

Input Impedance: balance 20K / unbalance 10K

Output Circuitry ：2-tier Class H

AC Power ：AC220V / 50Hz±10%

Amplifier and Load Protection ：Soft boot, DC, short circuit, overload, overheat, Clipping distortion

Input CONNECTORS ：Female XLR Type/ Male XLR Type

Output CONNECTORS ：NL4 Speakon socket, Binding post

Controls and LEDs—Front Panel：Peak clipping, Signal, A&B Volume potentiometers, DC, Protection indicator

Controls and LEDs—Rear Panel：Stereo, Splice, Bridging option switch, Bridging incicator, Sensitivity option switch, Grounding switch, 30Hz HI-PASS switch.

Cooling mode: Stepless automatic transmission cooling fan.
