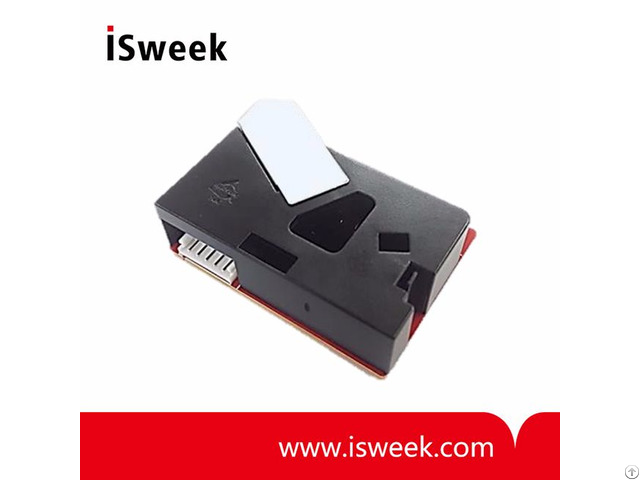

PDSM010 Particle Sensor Module Product Summary

PDSM010 detects approx.

1μm particle such as house dust, pollen, germs, dust mites and cigarette smoke and measures the concentration of floating particles in a room space up to maximum 30m3.

/

This sensor is an ideal product for automatic room air monitoring system such as an air purifier.

/

PDSM010's signal is converted to PWM output by internal circuit and MCU program.

Also, the sensor's filter circuit and MCU program can remove a noise in order to operate more stably when a noise is in-flowed in the signal.

/

PDSM010 has advantages of both stable detecting ability and high manufacturing efficiency.

/

The sensor does not have an additional control point (VR Trimmer) on the device unlike its previous model (DSM).

It prevents potential malfunction often occurred by user's arbitrary modification.

/

PDSM010 Particle Sensor Module Features

• Customized sensitivity for efficient control in application

• Detects approx.

1μm particle

• MCU Control (Factory Calibration)

• Easy maintenance

• PWM Output (Low Logic Pulse Active)

• Noise Protection

/

PDSM010 Particle Sensor Module Applications

• Air cleaners, Air conditioners

• Ventilation System, Fan Control • IAQ Monitoring & Control

• IoT Device

/

PDSM010 Particle Sensor Module Product Specification

• Supply Voltage: 5V ± 10%​ V​ • Supply Current (@ 5V): < 85​mA • Storage Temperature Range: -20 ~ 80°C​ • Operating Temperature Range: -10 ~ 65​°C • Operating Humidity Range: < 95​%RH​ • IAQ Monitoring & Control • PWM Output
