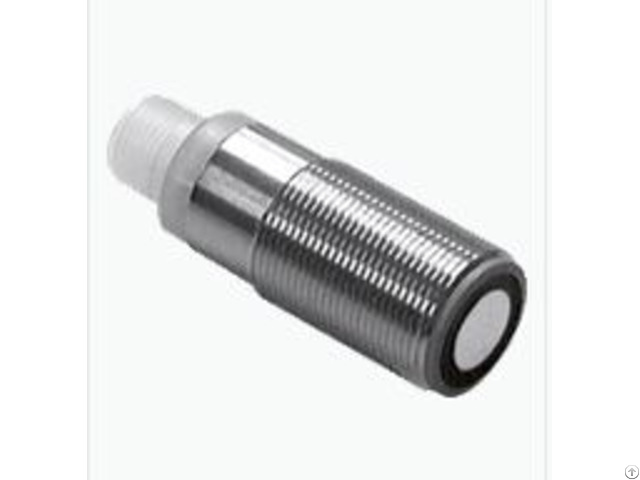

Ultrasonic sensor UB300-18GM40A-I-V1

Short design, 40 mm

Function indicators visible from all directions

Analog output 4 mA .

20 mA

Measuring window adjustable

Program input

Temperature compensation

Product Description

Single head system

General specifications

Sensing range 35 .

300 mm

Adjustment range 50 .

300 mm

Dead band 0 .

35 mm

Standard target plate 100 mm x 100 mm

Transducer frequency approx.

390 kHz

Response delay approx.

50 ms

Indicators/operating means

LED green Power on

LED yellow solid yellow: object in the evaluation range

yellow, flashing: program function, object detected

LED red solid red: Error

red, flashing: program function, object not detected

Electrical specifications

Operating voltage 10 .

30 V DC, ripple 10 %SS

No-load supply current ≤ 20 mA

Input

Input type 1 program input

lower evaluation limit A1: -UB .

+1 V, upper evaluation limit A2: +4 V .

+UB

input impedance: > 4.7 kΩ, pulse duration: ≥ 1 s

Output

Output type 1 analog output 4 .

20 mA

Default setting evaluation limit A1: 50 mm evaluation limit A2: 300 mm

Resolution 0.4 mm at max.

sensing range

Deviation of the characteristic curve ± 1 % of full-scale value

Repeat accuracy ± 0.5 % of full-scale value

Load impedance 0 .

300 Ohm

Temperature influence ± 1.5 % of full-scale value
