Plastic Housing 2 6 Rj45 Multi Port Jack Job 3448nl Metal Shield Colorful Led - China

JOB-3448NL 2*6 Multiple ports PoE RJ45 Connector with LED ang finger product details: 1 - RoHS CERTIFICATION 2 - PLASTIC HOUSING : THERMOPLASTIC MATERIAL WITH FLAMMABILITY RATING UL 94V-0 OR BETTER 3 - CONTACT BASE MATERIAL: PHOSPHOR BRONZE 4 - CONTACTS UNDERPLATE: 30-50 MICROINCHES DUCTILE NICKEL 5 - CONTACTS PLATING: 30 MICROinches GOLD PLATING 6 - SOLDER TAIL PLATING MATERIAL : 200 - 500 ULNCHES 100% TIN, MATTE FINISH 7 - METAL SHIELD: NICKEL PLATING ON COPPER ALLOY 8 - JACK CAVITY CONFORMS TO FCC RULES AND REGULATIONS PART 68 SUBPART F.

9 - PCB PLATING: HASL ( TOP PCB ) ENIG ( BOTTOM PCB ) 10 - SOLDERABILITY: CONFORMS TO ANSI/J - STD - 002, IPC/EIA J -STD-003A 11 - OPERATING TEMPERATURE : 0 TO 70 12 - STORAGE TEMPERATURE: - 200 TO +125 13 - JEDEC MOISTURE: LEVEL 1 14 - DIMENSIONS ARE IN INCHES (MILLIMETERS) WITH THE FOLLOWING TOLERANCES: (MILLIMETERS) ARE FOR REFERENCE ONLY.

.

XX = .

02 (0.5) .

XXX = .

010 (0.25) ELECTRICAL CHARACTERISTICS AT 25 UNLESS OTHERWISE SPECIFIED (FOR REFERENCE ONLY.

USED FOR CUSROMER INFORMATION) - - - - PARAMETER | SPECIFICATIONS | OPERATING TEMP | 0 TO 70 | TURNS RATIO | 1: 1 2% | POLARITY | PER SCHEMATIC | INSERTION LOSS | 1 - 30 MHz | 100 MHz | 125 MHz | -1.0 dB MAX | -1.8 dB MAX | -3.0 dB MAX | RETUREN LOSS (Z OUT=100 OHM 15%) | 1 MHz | 40 MHz | 60 MHz | 80 MHz | 100 MHz | -20 dB MAX | -18 dB MAX | -14.4 dB MAX | -12 dB MAX | -10 dB MAX | INDUCTANCE(OCL) @ 100KHz, 100mVRMS FROM 0 TO 70 | MP1, MX2 | MX3, MX4 | 120 uH MIN WITH 19 mA DC BIAS &350 uH MIN WITH 8 mA DC BIAS | 350 uH MIN WITH 8 mA DC BIAS | CROSSTALK, ADJACENT CHANNELS | 1 MHz | 30 MHz | 60 MHz | 100 MHz | -50 dB MIN | -43 dB MIN | -38 dB MIN | -33 dB MIN | COMMON MODE REJECTION RATIO | 125 MHz | 250 MHz | 375 MHz | 500 MHz | 625 -1000 MHz | -35 dB MIN | -28 dB MIN | -24 dB MIN | -18 dB MIN | -15 dB MIN | DC RESISTANCE 1/2 WINDING | .

65 OHMS MAX | DC RESISTANCE IMBALANCE | .

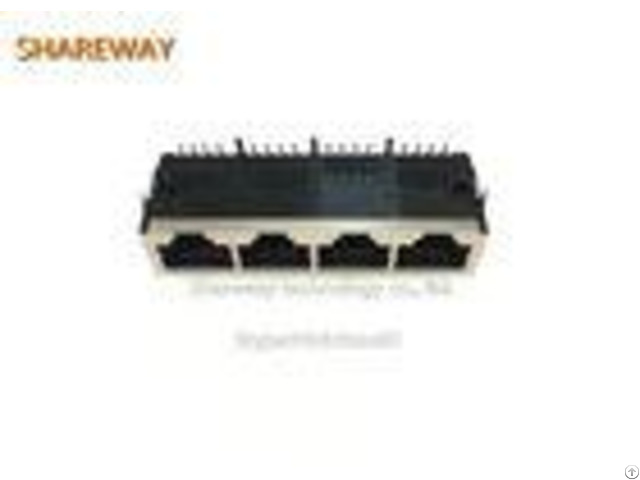

065 OHMS MAX ( CENTER TAP SYMMETRY ) | DC CURRENT/VOLTAGE RATING - PSE PINS | 720 mA MAXIMUMM | WORKING VOLTAGE | BELOW 24 VOLTAGES | - - - - NOTE: PER VENDOR'S SPECIFICATIONS - - - - EMMITTED COLOR | YELLOW | GREEN | WAVELENGTH (nm) | 585 nm | 565 nm | BRIGTHNESS (mCD) | 5 TO 7 TYP @ 10mA | 6 TO 8 TYP @ 10mA | VIEWING ANGLE | 85 - 100 | 85 - 100 | POWER DISSIPATION (Pd ) | 80 mW MAX | 80 mW MAX | DC FORWARD CURRENT | 100 mA MAX | 100 mA MAX | REVERSE VOLTAGE (Vr) | 2.1 TO 2.6 VOLTS | 2.1 TO 2.6 VOLTS | - - - - JOB-3448NL 2*6 Multiple ports PoE RJ45 Connector with LED ang finger PRODUCT PICTURE JOB-3448NL 2*6 Multiple ports PoE RJ45 Connector with LED ang finger HOW TO ORDER 1 - Please send me your datasheet or part number you need.

2 - We will offer the replacement quotation for your reference 3 - The free samples are available for your approval.

4 - After sample testing, we will step into the mass order.

5 - The Proforma Invoice will send for your confirmation 6 - After the goods finished, we send the goods to you and tell you the tracking number.

7 - We will track your goods until you receive the goods.

Remarks: 1 - Sample orders are avaliable.

2 - Price is negotiable for orders of large quantity.

3 - Customized orders (OEM/ODM orders) are avaliable.

4 - Contact us for available flavors list.

International Certifications: 1 - ISO9001: 2008 2 - UL 3 - Reach 4 - RoHs Our service: 1 - 100% tested before shipping 2 - Have alternative for Halo, Pluse, Wurth, We-online, Chilisin, CoilcraftSame quality but better price 3 - Free sample available 4 - Provide new design for customer
