Poe Adapter Pt Pse100gfn 24 - China

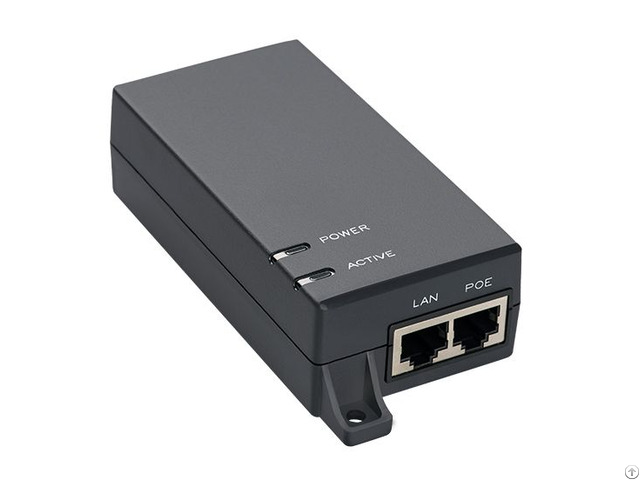

poe adapter PT-PSE100GFN-24

PT-PSE100GFN-24 is a single port midspan Injector with 2 Pair PoE up to 15.4 watts of power at 24 VDC at 0.65 amp.

We provide high quality PoE Injector, outdoor PoE Injector, POE for DIN Rail, dc poe injector and soon.

Designed for the PoE powered 15.4W PoE Powered Devices (PDs), such as IP Cameras, wireless APs, Microwave radio, IoT application, door locks, displays, POS, and information kiosks, It supports 10/100Mbps of data rates.

Fully comply with IEEE802.3af devices.

It will directly power PD without detection.

poe adapter for sale: Creative Lianjie Network Technology

Enclosed in an plastic case.

It operates with input voltage of 100-240 VAC, 50 or 60 Hz.

The effective distance limitation of 100 meters over Cat5e/Cat6 cables.

We are PoE Injector supplier and more information you can view here china poe adapter Specifications

Parameter Description

Key Features Passive 15.4W CE, FCC

Part Number PT-PSE100GFN-24

Ports condition LAN Port*1, AC Input Port*1, PoE Output Port*1

Regulatory Compliance IEEE802.3af RoHS Compliance WEEE Compliance

Pass Through Data Rates 10/100/1000 Mbps

Output Pin Assignment and Polarity: 4/5 (+), 7/8 () Output Power Voltage: 24Vdc User Port Power: 15.4W Guaranteen

Input AC Input Voltage: 100 to 240 Vac AC Input Current: 0.5A Frequency: 50-60Hz

Working Environment Operating Temperature: 0℃to 40℃ Operating Humidity: 20% to 80%, non-condensation Storage Temperature: -20℃to 70℃ Storage Humidity: 10% to 90%, non-condensation Operating Altitude: up to 2000meters

AC Surge Protection Line-Earth 1.2/50us (8/20us): 2KV Line-Line 1.2/50us (8/20us): 1KV

Mechanical Characteristics Case: Plastic Color: Black Mounting: Wall- mounted IP Rated: IP40 Connectors: Shielded RJ-45*2 Size: 134mmX 56mmX 33mm Weight: 150g(0.33lb)

LED Indicator Power Indicator : Green PoE Load Indicator : Green

Warranty 2 year

Safety Approvals CE, FCC

Company Contact:

• Posted By: Creative Lianjie Network Technology Co., Ltd

• Phone: 861082873031

• Address: No.2228, XianFeng Building,Shangdi Kaituo Rd No. 7, Haidian District, Beijing , Beijing , China

• Email:

• Website: https://www.procetpoe.com

• Business Description: Creative Lianjie Co., Ltd established in 2000, we have our own brandProcet.

  We are an integrated and manufactured enterprise not only specialized in R&D but also good at manufacturing.

  Our headquarter is based in Beijing, our R&D center and factory is located at Dongguan City.

  Our company has got ISO 9001: 2015, ISO 14001: 2015, OHSAS 18001: 2007 Certification.

  We accumulated abundant experiences and excellent corporate reputation during the past years.

  We have richvarietyofPoE Products, Single-port PoE, multi-port PoE, lightning-PoE, indoor PoE, outdoor IP67 PoE, DC PoE, Wide-temperature PoE, high power PoE, Industrial PoE, SFP fiber PoE, DIN Rail&Wall mounting&Pole mounting&Wall plug PoE, PoE Splitter, PoE Extender etc.

  All the PoE designed base on CE/FCC/CCC requirements, part type past cUL/UL, SAA, PSE, BIS, KCC, RCM, NOM certification.
