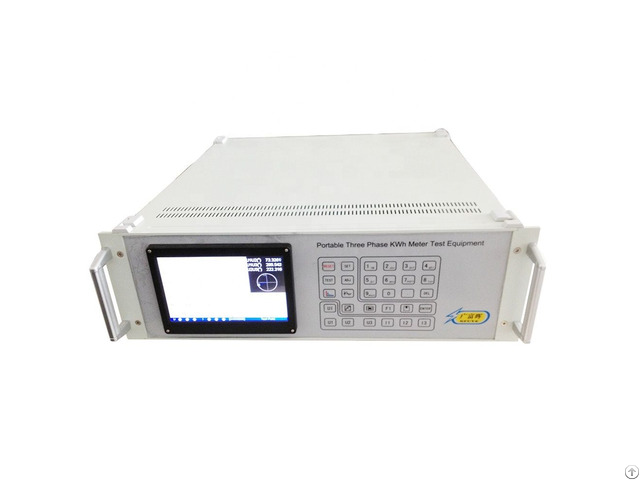

Portable Three Phase Kwh Meter Calibrator Gf302d Gfuve 120a 600v Watt Hour - China

price: 33565.00 Dollar US$

The GF302D portable meter test equipment is used for grid corporation of measurement and energy test center, management department of power supply bureau, national energy measurement of testing authorities, and also used to test each kind of single/three phase kWh meter of industries and mining enterprises as well as electric meter manufacturers.

Meanwhile, the meter test equipment also can be used as one high precision standard power source, voltage source and current source.

Portable design, used in the laboratory or on site to auto check energy meter error.

Specification

Warranty: 3 years

Power: Electronic

Customized support: OBM

Place of Origin: Beijing, China

Brand Name: GFuve

Model Number: GF302D

Accuracy: 0.05%, 0.1%

Power supply: One Phase AC 100-265V, frequency 50/60Hz.

Voltage output Range(U1, U2, U3): 0-500V or 0-600V

Current output Range(I1, I2, I3): 200mA, 1A, 5A, 20A, 100A; Max 120A

Active power output stability: <0.01%RG/120s

Reactive power output stability: <0.02%RG/120s

Active power measuring accuracy: 0.05%RG

Reactive power measuring accuracy: 0.1%RG

Apparent power measuring accuracy: 0.05%RG

Dimension: 500x600x175 mm

Weight: 22 kg


Company Contact:


  • Phone: 18901232181

  • Address: Oriental HuaRui A No. 150 Guanzhuang Road Chaoyang District Beijing, 100024, China, BEIJING , China

  • Email: Email

Published date: January 31, 2024

  • Business Description: Beijing GFUVE Electronics Co., Ltd. was established in 2005 - It combined science, industry and trade together as one high-tech enterprise.
