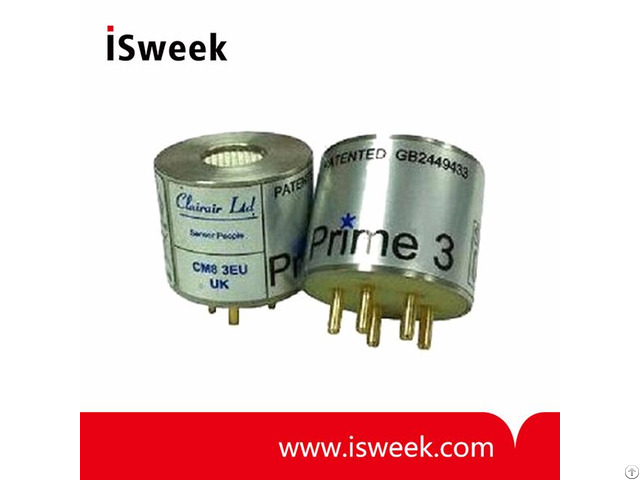

Prime3 Infrared Carbon Dioxide Sensor Description and Operation The Prime3 sensor use the non-dispersive infrared method to detect the presence of carbon dioxide.

The sensor contains an infrared radiation source, a dual element infrared detector, a unique optical waveguide into which gas diffuses and integrated ARM7 core microprocessor based electronics to provide a voltage output which is independent of the power supply polarity.

The sensor can be configured to provide a linear voltage output, typically 0.4V - 2.0V over range with respect to the negative supply pin, or a pellistor format output, typically mid supply at zero with the voltage output increasing with respect to the detector pin by 100mV at range.

/

In addition, the output can be read and the internal configuration can be accessed by a serial communications link.

The communication link contacts are pads in the 3 pin version Prime3 and pins in the 5 pin version Prime3 - The internal electronics perform all the functions of driving the optical parts of the sensor, extracting the detector signals, converting the signals to a concentration, applying temperature compensation and scaling the output.

When in a pellistor configuration, the Prime3 can operate in existing pellistor circuitry subject to the power supply requirements.

External components will be required to meet the power supply requirement when a Prime3 is used in constant current pellistor circuitry.

The Prime3 is not currently Ex approved so should be housed in a suitable Ex enclosure when used in Hazardous areas.

/

Prime3 Infrared CO2 Sensor Features • High Resolution of 0.01% vol for 0-6% vol and 0.1%vol for 6 - 100% vol

• Operates independent of supply polarity

• Voltage or pellistor mimic bridge output

• Operating voltage range 3.0V - 5.0V

• Operating current 80mA typical

• Latest technology MEMS detectors

• Sensing ranges: 0-10% volume CO2 up to 0-100%volume CO2

• All metal construction with isolated housing

• Small internal volume

• Flexible electronic configuration access

• User calibration also enabled by hardware connections

• Wide operating temperature range

• Fast response

/

Prime3 Infrared Carbon Dioxide Sensor Performance

• High Resolution of 0.01% vol for 0-6% vol and 0.1%vol for 6 - 100% vol • Supply voltage range: 3.0V - 5.0V • Power consumption: 280mW typical • Nominal ranges: 0 - 100% volume CO2 • Response time (T90): < 30s to a step change in gas concentration • MTBF: > 5 years • Operating temperature range: -30°C to +60°C • Storage temperature range: -40°C to +80°C • Operating pressure range: 700 - 1300 hPa
