Ps 2800 Smps Professional Power Amplifier 2 800w At 8 Honm - China

price: 1.00 Dollar US$

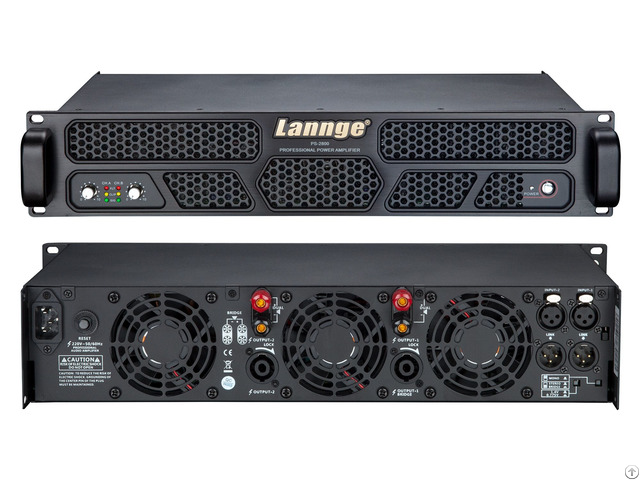

Ps 2800 Smps Professional Power Amplifier 2 800w At 8 Honm

Products Photos Catalog 2800 Smps Power Photos Catalog

MAIN FEATURE

1 - Fashion front panel is made of brushed aluminums alloy;

2 - Sturdy steel case can shield the electromagnetic interference from outside;

3 - Strong multi-protection mechanism including radiating protection, short circuit protection and switch delay protection;

4 - Powerful output capacity to achieve driving bass, mellow alto and clear treble;

5 - Multistage power transmission combines H technology and topology will led to clear and driving sound, and reduces electric consumption;

6 - Design of optimized switching power supply makes the amplifier smaller and easy to be installed;

TECHNICAL SPECIFICATIONS

8Ω stereo(per channel) (1kHz(EIA)with 0.5%THD): 2*800W

4Ω stereo(per channel) (1kHz(EIA)with 0.5%THD): 2*1200W

8Ωbridge mono (1kHz(EIA)with 0.5%THD): 2400W

Voltage Gain: 35dB

Total Harmonic Distortion(THD): < 0.5%, 20Hz-20kHz

Intermodulation Distortion(IMD): ≦0.35%

Slew Rate: >10V/us

Frequency Response (at 1 Watt): 20Hz-20kHz, +0/-1dB

Damping Factor (8 Ω), 10Hz-400Hz >200

Signal-to-Noise Ratio (below rated power, 20Hz -20kHz, A-weighted ): >100dB

Crosstalk (below rated power) At 1 kHz At 20 kHz: -75dB -59dB

Input Sensitivity for full rated power at 8Ω: 0.775V or 1.4V

Input Impedance (nominal) Balanced / Unbalanced: 20kΩ / 10kΩ

Input Connectors: Once balanced XLR per channel

Output Connectors(Speaker Connectors): 4-POLE Speakon per channel

Front Panel Controls: Power on/off switch, one gain control per channel

Rear Panel Controls: Power on/off switch, one gain control per channel Input sensitivity switch: 0.775V or 1.4V

Power Indicator Signal Indicator: One red LED of work, One green LED per channel

Clip(peak) Indicator Fault Indicator: One yellow LED per channel, One red LED per channel

Protection: Protection against short circuits, no-load, on/off muting, Rf interference.

Stable into reactive or mismatched loads

Ventilation: Flow-through ventilation form front to back

Cooling: speed regulated, thermal protection


Company Contact:


  • Phone: +86-15807507101

  • Address: No.1 E1,District 2,Industrial Transfer Estate, Jiangmen, Enping, Guangdong , China

  • Email: Email


Published date: July 26, 2016

  • Business Description: LANNGE ELECTRONICS CO., LTD. established in 2010, is a new high-technology enterprise manufacturing professional wireless microphones, processors, mixers, amplifiers, speakers etc audio products.

    Our company integrates research, production, sales and service with OEM and ODM value-added services.
