Psc G54nl Nv One Color Non Contact Infrared Pyrometers - China

PSC-G54NL/NV and PSC-S54NL/NV

1-Color Pyrometer Series

/

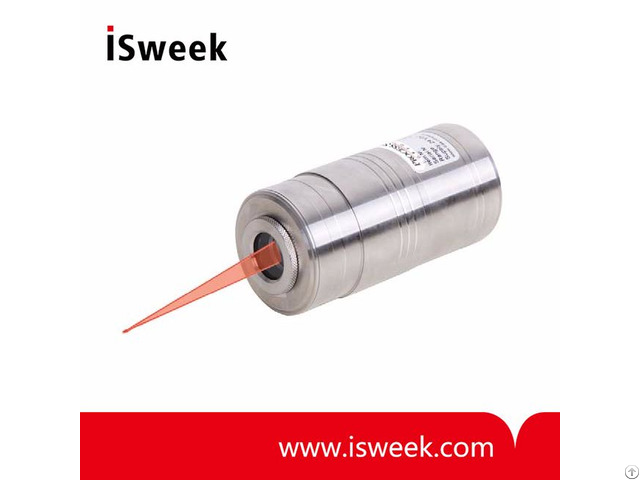

PSC-G54NL/NV and PSC-S54NL/NV Non-Contact Infrared Pyrometers Description

The Stand Alone PSC-G54NL/NV and PSC-S54NL/NV One-Color Pyrometer Series provide pinpoint accuracy over an incredibly wide temperature range with customizable options.

Choose from integrated laser aiming light or real-time color video camera sighting, ten distinct temperature ranges and four high-resolution, fixed focus optics.

/

These compact digital sensors are specifi cally designed for accuracy and reliability in harsh industrial and demanding laboratory applications.

The PSC-G54N and S54N Series' 0/4 to 20mA output allows easy integration to existing measurement and control systems.

RS-485 interface capability facilitates connection to a PC to allow all parameter settings to be set and adjusted using the PSCSpot software and optional RS-485 to USB connector.

/

PSC-G54NL/NV and PSC-S54NL/NV Non-Contact Infrared Pyrometers Features

• Compact, Self-Contained with Rugged Stainless Steel Housing

• Laser or Integrated Color Video Camera Sighting

• 10 Temperature Ranges Spanning from 200° to 3000°C

• Analog 4-20mA and Digital RS-485 Interface

• Choice of 4 Fixed Focus, High Resolution Optics

• Fast Response Time from 2ms, Adjustable up to 100 seconds

• Small Spot Size with Fixed Focus Optics

• Connect to PC to Adjust Parameters with PSCSpot Software

• RS-485 Modbus Interface Integration into Existing Data Acquisition Systems

• Robust Hardware Designed for Harsh Industrial Continuous Operations

/

PSC-G54NL/NV and PSC-S54NL/NV Non-Contact Infrared Pyrometers Applications

• Steel and Metals

• Induction Heating

• Ceramics/Composites

• Soldering

• Sintering/Graphite

• Welding

• Semiconductor

• Kilns

• Vacuum Furnace

• R & D

/

Specifications PSC-G54NL/NV and PSC-S54NL/NV Non-Contact Infrared Pyrometers

• Temperature Range PSC-G54NL / NV: 200 to 2500°C PSC-S54NL / NV: 550 to 3000°C • Spectral Range: PSC-G54NL / NV: 1.5µm to 1.8µm PSC-S54NL / NV: 0.8µm to 1.1µm • Accuracy: 0.5% of Measured Value in °C • Reproducibility: 0.1% of Measured Value in °C • Transmissivity: 50% to 100% • Power Supply: 24 V DC ± 25%, Residual Ripple 500 mV
