Psc Sr54nl Two Color Non Contact Infrared Pyrometers - China

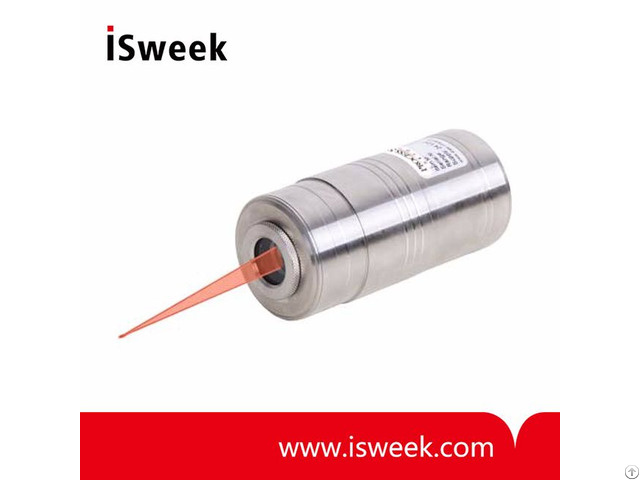

PSC-SR54NL and PSC-SR54NV

2-Color Pyrometer Series For Industrial and R&D Applications

/

PSC-SR54NL/PSC-SR54NV Non-Contact Infrared Pyrometers Description

Two-Color or Ratio Pyrometers measure temperatures from the ratio of radiation signals of two adjacent wavelengths as opposed to measuring the absolute intensity within one wavelength, as with one-color pyrometers.

The advantages and benefi ts of using two-color sensors are the following:

• Automatic compensation for viewing though dirty windows, dust and partial smoke between sensor and target.

• Compensation for changes in target emissivity i.e. gray bodies — targets with the same emissivity on both wavelengths.

• Measures smaller target than sensor’s fi eld of view (FOV/Spot Size) i.e. measures weighted peak temperature within FOV.

• Unaffected by moving targets within FOV.

/

PSC-SR54NL/PSC-SR54NV Non-Contact Infrared Pyrometers Features

• High Accuracy/Repeatability with Self-Contained Stand Alone Operation

• Wide Temperature Ranges from 500° to 3000°C (932° to 5432°F)

• Integrated Red Laser or Video Camera Sighting

• High Resolution Optics Up to FOV 200: 1

• Fixed Focus Optics

• Fast Response Time – 5 milliseconds, adjustable

• Simultaneous Analog and Digital Outputs

• 4-20mA and Digital RS-485 Communications

• Durable, Compact Stainless-Steel Housing

• Innovative, Rugged Design Accessories

/

PSC-SR54NL/PSC-SR54NV Non-Contact Infrared Pyrometers Applications

• Induction Heating

• Steel Industry

• Heat Treating of Metals

• Kilns

• Vacuum Furnaces

• Welding

• Composites

• Sintering

• Nuclear

• Research and Development

/

Specifications PSC-SR54NL and PSC-SR54NV Non-Contact Infrared Pyrometers

• Temperature Range: 500 to 3000°C • Spectral Range: 0.8µm to 1.1µm • Accuracy: 0.5% of Measured Value in °C • Reproducibility: 0.1% of Measured Value in °C • Transmissivity: 50% to 100% • Power Consumption: Max.

1.5W • Power Supply: 24 V DC ± 25%, Residual Ripple 500 mV • Operating Temperature: 0° to 70°C (32° to 158°F)
