Qpcx Electrical Transducer - China

price: 38.00 Dollar US$

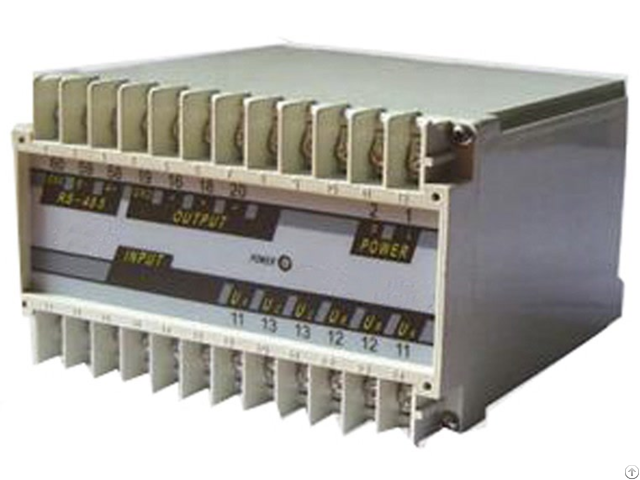

Qpcx Electrical Transducer

Products Photos Catalog Qpcx Electrical Photos Catalog

1 - QPCX electrical transducer converts ac current and voltage signals into a load independent dc signal

proportional to active power (watt), reactive power (var) and power factor (PF).

With an extra output

channel for customized.

Total four channel output for electrical data sampling use.

2 - The current and voltage signals are passed into the circuit via precision instrument transformers to

provide galvanic isolation between the input circuits and the transducer circuitry.

Each pair of current

and voltage signals is mathematically multiplied together to produce a product signal proportional to

true power and independent of wave shape and phase angle.

3 - This combination transducers with RS485 communication port, it can be connected to a variety of

measuring and control devices and systems, such as analogue meters, PLC, computers, data loggers, digital instruments and telemetry systems.

4 - Snap on to DIN rail 35 x 7.5 mm complies with DIN-EN 50022 BS 5584


Company Contact:


  • Phone: 18084019785

  • Address: JingYu Avenue No.153, Building 3A-13-25, Jiangbei District , 400020, Chongqing, P.R.China, chongqing , chonging , China

  • Email: Email


Published date: July 23, 2018

  • Business Description: ·Class 0.5 basic parameter and class 1 for active energy

    ·6 channels three phase or 18 channel single phase metering

    ·Current measuring .

    /5 or .

    /1 A (optional 333mV)

    ·Standard 35mm - 8 module DIN rail mounting

    ·Provide RS-485 MODBUS-RTU Communications

    ·Optional 6DI / 2DO for signal detect and remote control

    ·Optional external connection LCD screen, 96*96mm panel mount

    ·Optional TOU record for each monitor channel

    ·Accept customization design
