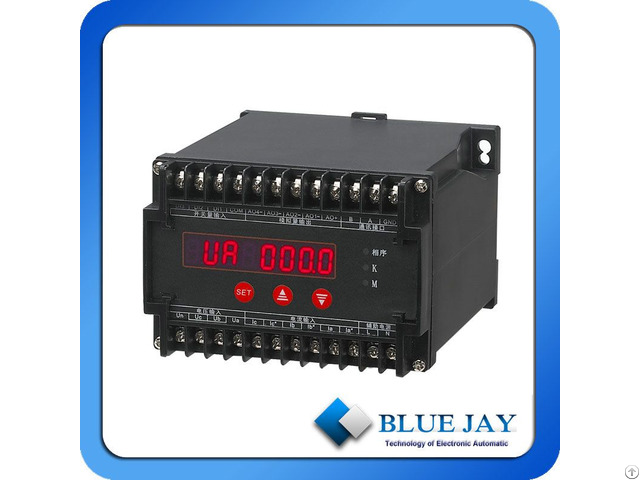

Qppx Electrical Transducer - China

price: 136.00 Dollar US$

Qppx Electrical Transducer

Products Photos Catalog Qppx Electrical Photos Catalog

Description AC programmable transducer measures a

wide range of electrical parameters and

generates analog or digital output signals

suitable for interfacing with instrumentation

and control systems.

Total four channel

output, with panel key or PC control

programmable, user can free to set 4

different data from max 26 electrical

parameter for sampling and analog signal

output.

Have three channel digital inputs and

optional RS485-Modbus communication

functionality.

Can monitor the galvanically

isolated DI signal and programmed the

transducer with customized SCADA software.

Any of the measured parameters can be read

out via the optional RS485-Modbus

connection.

Features ·Input three phase AC grid parameter:

5A(100V) / 1A(100V) / 5A(400V) / 1A(400V)

·Output: 4-20mA/0-20mA; 0-5V/0-10V optional

·85~265VAC/380VAC wide voltage AUX for most

country and application

·With 4 channel output (support max 22 types

parameter for analog output)

·Front panel with 4 keypad for analog parameter

configuration, do not need back ground

software.

·With RS 485 port for remote electrical data

·500ms response time

·0.5 measurement accuracy

·35mm Din rail mounting

·Advanced electrical parameter ready optional

·SOE function optional


Company Contact:


  • Phone: (+0086) 023-67628702

  • Address: JingYu Avenue No.153, Building 3A-13-25, Jiangbei District , 400020, Chongqing, P.R.China, Chongqing , Chongqing , China

  • Email: Email


Published date: July 17, 2018

  • Business Description: Blue Jay is a high-tech enterprise.

    Focused on the design, manufacture and marketing of the electronic product, computer control equipment, communications and network equipment.

    Company offers products and solutions ranging from measuring and electrical control, quality and metering to power factor correction
