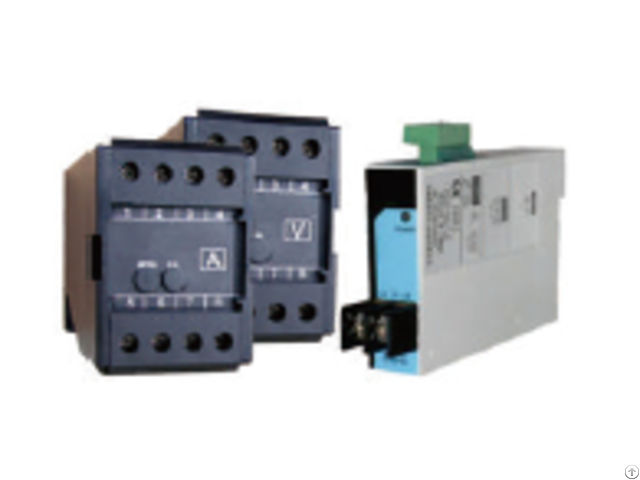

QPV/QPA

AC Grid Transducer

Single phase for DIN mounting

·Metering of distribution feeders, transformers, generators, capacitor banks and motors.

·Medium and low voltage systems.

·Measuring converter: optional association of an instantaneous

parameter to one of the analogue outputs available (0.20 mA /

4.20 mA)

AC grid transducer converts an ac voltage or

current input into a load independent output

signal.

With excellent temperature

characteristic and good working stability.

The unit conforms to IEC 60688 - In a addition

it meets the insulation requirements of IEC

60255-5, clauses 5, 6 and 8 as well as the

high frequency disturbance test of IEC

60255-22 for Class III test voltage.

·AC Voltage Input: 110V, 220V, 380V optional

·AC Current Input: 0-5A, 5-10A, 0-10A optional

·Output: 0-5V, 0-10V, 4-20mA, 0-20mA optional

·RMS measurement and output

·0.2/0.5 measurement accuracy

·100ms response time(T type 1s/500ms)

·Minimum thickness of size (T type)

·35mm Din rail mounting

·RS485 port optional

·Support customized parameters

Technical characteristics

QP/QP/DP Electrical Transducer DP Electrical Transducer

P-21 P-22

BLUE JAY BLUE JAY

System input 110V, 220V, 380V for voltage

5A, 10A, for current

Absorbed power 0.5VA

Frequency range 50Hz, 60Hz

Standard outputs 4~20mA, 0~5V, ( others on request) 0~20mA;

5~10V;

0~10V;

R ipple <0.5% peak to peak

Current output: 05KΩ

Class 0.5 to IEC 60688 0.5%of nominal output for specified range

Accurate range 0 - 120% V (QPV)

0 - 120% I (QPA)

Frequency influence <0.02% per Hz

Load influence <0.25% of full span for specific load range

48V, 110V, 230/240V AC 20%, 1.5VA

24V, 48V, 110V DC 20% 2W

Test voltage 2KV RMS 50Hz for 1 minute

impulse 4KV 1.2/ 50μsec waveform

Operating -10~55C

Storage -40~70C, 20 ~ 93%RH ; Noncondensing
