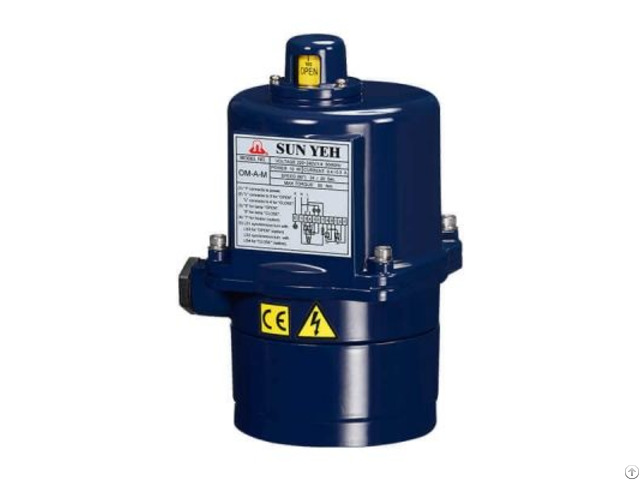

Quarter Turn Electric Actuators Om A - Taiwan
price: contact company for price
Description:
Power: 10W
Max Torque: 50 N‧m/445 in‧lb
Speed: 27 Sec/90°
Weight: 3 kg/6.6 lb
Manual Override: N/A
Mounting Flange(ISO 5211): F05/F07 Feature:
Enclosure:
IP67, NEMA 4X : Water-proof and dust-proof enclosure.
Cover material: Dry powder coating aluminum alloy.
Base material : Dry powder coating aluminum alloy.
Motor :
F (Standard) or H (Optional) insulation class for all models.
Built-in thermal protection prevents motor burning out.
AC motor：125±5℃/257±9
DC motor：90±5℃/194±9 Duty Cycle :
OM-A：30％ duty cycle (Standard Model)
OM-A：75％ duty cycle (Optional)
Working Conditions :
Ambient temperature：-30℃ to +65℃ / -22℉ to +149℉
The humidity：30％ to 95％
Position Indicator :
All models have continuous mechanism position indicator on the top of actuator cover.
Gear Train :
Gear trains have been already lubricated sufficiently with anti-high temperature lubricant at the factory.
Conduit entrance :
Standard : 1/2" PS
Optional : 1/2"PF, 1/2”NPT or M20
Various voltage :
AC/DC 12V
AC/DC 24V
AC 110/220V, 1-Phase
Enclosure :
Nylon coating
E.D. coating
Epoxy coating
Motor insulation class :
Standard : F class
Optional : H class
Communication Protocols :
Modbus RTU RS485
Company Contact:
- Posted By: Sun Yeh Electrical Ind. Co., Ltd.
- Phone: 886-4-26985666
- Address: No. 68, Lane 854, Sec. 1, Shatien Road., Dadu Dist., , Taichung City, Taiwan , Taiwan
- Email:
- Website: https://www.sunyeh.com
Published date: August 6, 2019
- Business Description: Established in 1986, Sun Yeh Electrical Ind.
Co., Ltd. offers Electric and Valve Actuator, Electric Valve Actuators, quarter-turn actuator, fail-safe spring return actuator and linear actuator widely applied to the control on industry, water treatment, air conditioning, etc.
