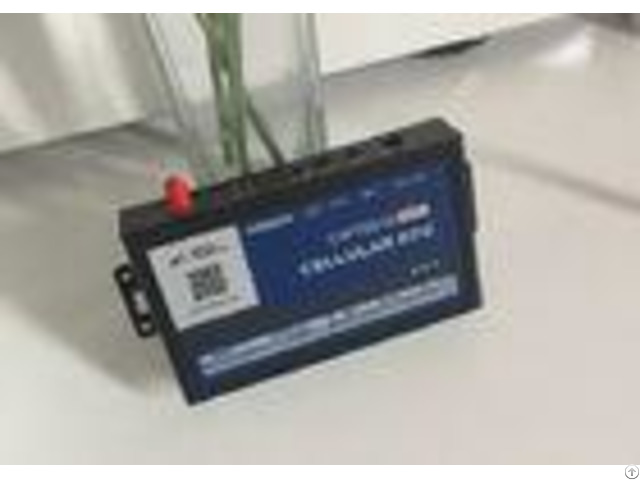

Remote Control M2m Gateway Automation Monitoring System Http Post Protocol - China

M2M automation monitoring system, M2M gateway for remote control System Feature # Industrial NXP 32-bit ARM MCU # 247 working, soft and hardware Double watchdog # Dual digital filters for anti-noise # Support automatic network reconnection and data re-send # Update RTC automatically or manually, clock source support Sms, NTP, CwtIO Server # Can set multiple timers(second, minute, day, week, month) to execute actions, e.g. output, upload data, change setting # Support Interlock programming, Event trigger # Easy used GUI configure software for setting up to 100 parameters # Optional exterior rechargable battery for 8-20 hours working when power lost DI feature # Accept NO or NC dry contact DO(T) feature # Open-collector output(drive voltage=power supply voltage, Drive current500mA) # Remote or local event activate DO on/off/pulse # Status memory function for power lost DO(K) feature # Relay output(NO, contact load: 2A / 125VAC, 220VDC) # on/off/pulse DO by remote control or local event # Remain down status when power lost AI feature # Accept 4-20mA (option: 0-5V), Sampling frequency: 33Hz, 10-bit precision) # Transduce 4-20mA(0-5V) to actual value # Can set parameters for value processing, alarm, data transmission # Detect connect or disconnect to alarm SMS feature # Can add 10 administrator numbers for alarm and remote control # Any device alarm status can be sent by sending sms # All alarm and recover sms text can be edited # Can send sms command to request any channel status or value # Activate output by sending sms # Configurable schedule for sms report IO channel's status or value # Sending sms command to update setting # Can query SIM card balance, sms forward # Support power lost sms alarm and recover sms(works with inside battery) # Wireless network communication # Option network: cellular(2g/3g/4g) or Wi-Fi # Support TCP/IP two-way communication with Max.

4 servers(IP or domain) # Automatically Upload data when alarm or according to schedule # Support http post, Modbus TCP, CWT protocol over cellular or Wi-Fi # Transfer RS485 or RS232 Data to wireless network TI feature # Configurable parameters for alarm (high or lower), record, data communication, adjustment # Can switch or F # Alarm when probe connection lost
