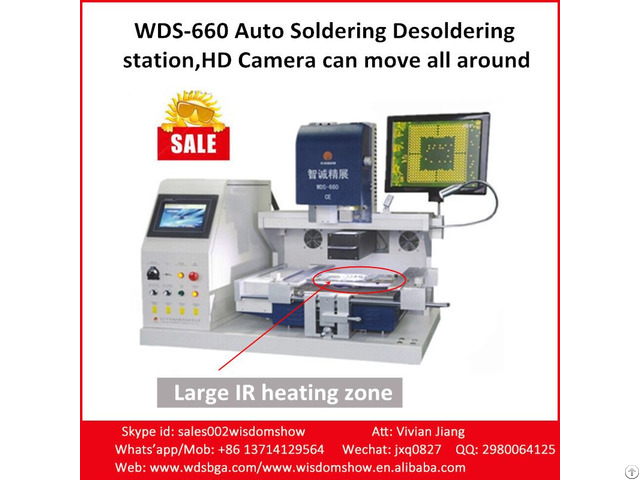

WDS-660 BGA rework station

1 - built-in laser position

2 - optical alignment vision system

3 - CCD camera to make bga mounting, can move around

4 - high automatic & easy operation

5 - Large IR heating zone, good for xbox360, playstation etc

1 - Widely used in the Chip Level Repair in laptop, PS3, PS4, XBOX360, Moblie Phone, etc.

2 - Rework BGA, CCGA, QFN, CSP, LGA, Micro SMD, LED etc.

3 - Automatic Romoving, Mounting and Soldering.

4 - HD Optical Alignment system for precisely mounting BGA and Components.

5 - Laser Positioning function for Fast Positioning BGA Chip and motherboard.

6 - BGA mounting accuracy within 0.01mm , Repair success rate 99.9%.

7 - Superior Safety Functions, with Emergency protection.

8 - User-friendly operation system.

WDS-660 BGA rework station Specification:

1 - The Camera can rotate around, good for bga chips mounting, like xbox360, playstation etc

2 - High precision optical vision system with optical image, fine adjustment and 15 inch color LCD monitor.

3 - The machine could save 1-100 phases temperature curves.

4 - Three temperature zone independently.

5 - Three piece external temperature measurement interface detect temperature accurately.

6 - Super large IR heating zone, good for big motherboard work.

7 - High automatic avoid manual mistake.

Reworking lead free and double BGA board will be accurate.

8 - Adopt high power cross-flow wind to cool the PCB board quickly, preventing the PCB board from deformation to ensure soldering effect.

9 - Accurately inspect temperature by high accurate K-type thermocouple with closed loop control.

Total Power Max 6600W

Upper Heating Power 1200W

Lower Heating Power Second zone: 1200W, Third zone: IR 4200W

Power Supply (Single Phase)AC 220V±10V 50Hz±3Hz 5.4 KVA

Machine Dimension L1200*W800*H900mm(not including LCD stand)

Positioning Way V-shape card slot, PCB holder can be adjustable by X and Y axes

Temperature Controlling K-type thermocouple closed loop control, independent temperature control

PCB Size(Max) 500*500mm

PCB Size (Min) 10*10mm

BGA Application Max.

80*80mm, Min.

1*1mm

Chip Blowup Diploid 2-50X

Temp.

difference among four-corner of hot air nozzle ±3 degree

Weight of machine 110Kg

Thermocouple Ports 3units
