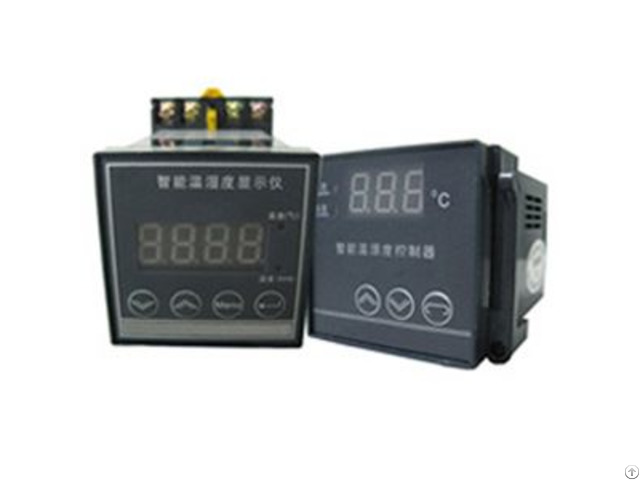

S S1 K1 Humidity Controller - China

Intelligent humidity controller with completed

FUZZY algorithm provides very precise of

temperature monitor.

FUZZY algorithm control fan

or heater to maintain sensible & latent capacity

follows humidity curve by automatically.

Display unit can show environment humidity as per

configure by user.

The user also can adjust

environment condition very easily.

Function & Feature

·DIN(48X48mm) Humidity Controller

·Indication and control accuracy 0.1℃, high measurement

·Heat/Fan control and PID control mode

·All settings except time maintained permanently in non-volatile memory until changed by user

·Built-in digital filter reduce interfere

·Self calibration technology, keep stabilization

·LED display show the data, prevent dazzle, highly visible display

·Simple 4-Button user interface

·Switching power supply and low consumption.

·Use large capacity relay

Specification

Power supply:

110/220VAC

(others on request) 24/48DC

Voltage range 80~110% rated voltage

Power consumption <5VA

Display:

1 line 7-segment LED display, 4 digital available

Display scale 1 digital after decimal point

Input:

Input route 1

Humidity sensor Capacitive type or customer request

Output type:

Output route 1

Relay 250VAC, 5A

Sampling rate

0.2sec

Communication

Type RS485

Protocol Modbus RTU mode

MODBUS speed 4800/9600bauds

Case:

IP protect 40

Isolation:

Galvanic isolation between input, output circuits

and auxiliary supply

Test voltage 1.5KV RMS 50 Hz for 1 minute

Temperature:

Operating -10~55C

Storage -40~70C, 20 ~ 93%RH ; No condensing
