S1 G2 Shenzhen Senergy Technology Co Ltd China - China

price: 1.00 Dollar US$

S1 G2 Shenzhen Senergy Technology Co Ltd China

Products Photos Catalog Senergy Technology Photos Catalog

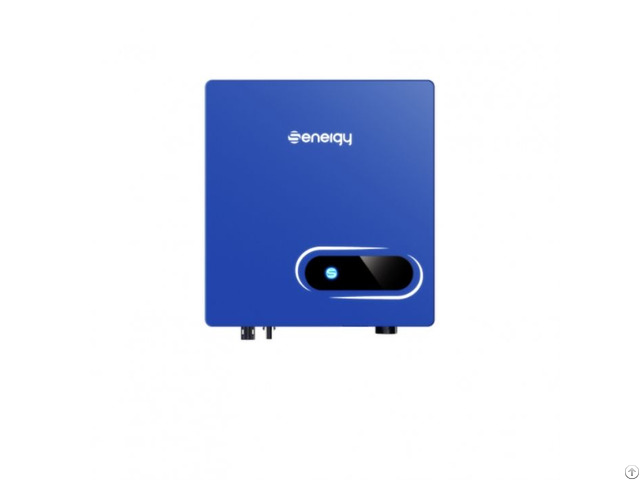

Features Maximum efficiency 97.8% String current 15A, compatible with high Power modules 150% PV configuration, 110% output overload IP65 waterproof and dustproof, C5 anti-corrosion Natural cooling Remote configuration and upgrade Model SE 2KTL-S1/G2 SE 3KTL-S1/G2 SE 3K6TL-S1/G2 Efficiency Max.

Efficiency 97.5% 97.8% 97.8% European Efficiency 96.5% 96.8% 96.8% Input(PV) Max.

Input Voltage 500V Max.

PV configuration(STC) 150% Rated Input Voltage 360V Max.

Input Current 15A Max.

Short Circuit Current 20A Start Input Voltage 70V MPPT Operating Voltage Range 50V-490V Max.

Number of PV Strings 1 No.

of MPPTs 1 Output(Grid) Rated AC Active Power 2, 000W 3, 000W 3, 600W Max.

AC Apparent Power 2, 200VA 3, 300VA 3, 600VA Max.

AC Active Power (PF=1) 2, 200W 3, 300W 3, 600W Max.

AC Output Current 10A 15A 16.0A Rated AC Voltage 220V/230V, L+N+PE AC Voltage Range① 160V-300V(Adjustable) Rated Grid Frequency 50Hz/60Hz THDI <3%(Rated Power) DC Current Injection <0.5%ln Power Factor > 0.99 Rated power (Adjustable 0.8 LD – 0.8 LG) Protection DC switch Support Anti-islanding protection Support AC overcurrent protection Support AC short circuit protection Support DC reverse connection Support Surge Arrester DC Type III(Optional) / AC Type III Insulation detection Support Leakage current protection Support General Topology Transformerless IP Rating IP65 Night Self Consumption <1W Cooling Natural cooling Operating Temperature Range -25℃-60℃ Relative Humidity Range 0-100% Max.

Operating Altitude 4000m Noise(typical) 30dB Dimensions (W*H*D) 320mm*344mm*137mm Weight 6.5kg HMI & COM Display Wireless & APP +LED, LCD(Optional) Communication Optional: RS485/WiFi /GPRS/4G/LAN Certification Safety IEC62109-1, IEC62109-2 Grid Code IEC61727/62116, ABNT 16149/16150, IEEE 1547, AS 4777 Warranty 5 Years Supports export power control More information please click here Company Contact:

Posted By: Shenzhen Senergy Technology Co., Ltd. Phone: 13602775308 Address: Room 405, Convergence Innovation Park, No.

2, Liuxian Avenue, District 68, Baoan District, Shenzhen, Shenzhen, Shenzhen, China Email: Email Published date: August 22, 2022 Business Description: Shenzhen Senergy Technology Co., Ltd. is a high-tech PV and solar inverter company with strong innovation power from our world-class R&D team, outstanding supply chain and manufacturing capability supported by our parent company Asia Power Devices Inc.

(APD).

We are committed to providing our customers with newest technologies, highest quality and first class service experience.


Company Contact:


  • Phone: 13602775308

  • Address: Room 405, Convergence Innovation Park, No.2, Liuxian Avenue, District 68, Baoan District, Shenzhen, Shenzhen , Shenzhen , China

  • Email: Email


Published date: September 2, 2022

  • Business Description: Shenzhen Senergy Technology Co., Ltd. is a high-tech PV and solar inverter company with strong innovation power from our world-class R&D team, outstanding supply chain and manufacturing capability supported by our parent company Asia Power Devices Inc.

    (APD).

    We are committed to providing our customers with newest technologies, highest quality and first class service experience.
