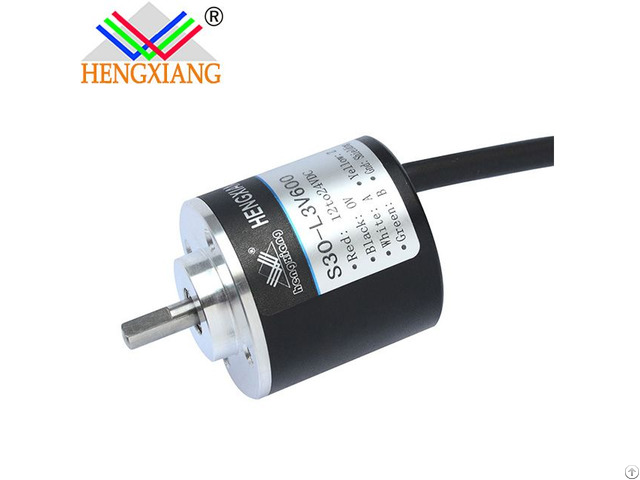

S30 Optimum Encoder Incremental Mini Pir Sensor From Hengxiang Factory - China

price: 30.00 Dollar US$

S30 Optimum Encoder Incremental Mini Pir Sensor From Hengxiang Factory

Products Photos Catalog S30 Optimum Encoder Photos Catalog

Items Basic parameters

External dimensions External diameter: 30mm

Thickness: 30mm

Shaft diameter: 4mm(D type)

Resolution 20;25;36;50;60;100;200;25 0;256;300;360;400;500;512 ;600;625;720;1000;1024; 1200;1250;1440;2000;2048; 2500 Output phase Phase A, B, Z, A-, B-, Z-

Supply voltage DC5V & DC8-30V

Outlettype Cable out from side

Cable out from back Output mode NPN&PNP

Voltage output Push-pull output Difference output Long line drive (26LS31)

Compatible RS422

Long line drive (RT7272)

Environmental temperature Operating temperature: -20~+80° (Non icing)

Storage temperature: -25~+85° (Non icing)

Environmental humanity Operating and storage: 35~85%RH (non-condensing) Protection grade IP50

Cable length 1000mm

Shell Aluminium

package Carton box

Net weight 90g (with package)

Certification CE


Company Contact:


  • Phone: 15956966023

  • Address: R301,Building7,Lane 115,No.1276 Nanle Road,SongJiang, shanghai , China

  • Email: Email


Published date: August 8, 2018

  • Business Description: We are specializing in the production of encoders, with more than 16 years of experience, we could provife you solid shaft encoder/ hollow shaft encoder/ absolute encoder and so on.
