Safety Glass Impact Testing Equipment - China

price: contact company for price

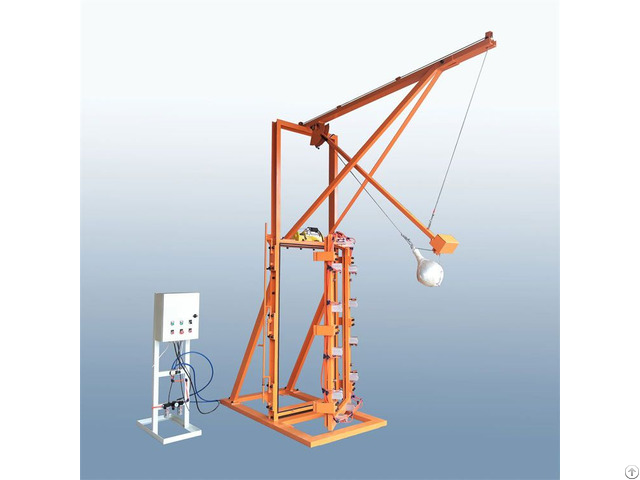

Safety Glass Impact Testing Equipment

Products Photos Catalog Safety Glass Impact Photos Catalog

Safety Glass Impact Testing Equipment

45kg/46kg shot bag and 50kg Pneumatic Tyres Impactor.

Processed in accordance with ANSI Z91.1, ISO 3537, BS EN 12600 and AS NZS 2208 - Related Standards:

AS/NZS 2208 Safety glazing materials in buildings – Appendix D: Impact Test

GB 15763.3 Safety glazing materials in building Part 3: Laminated glass – Appendix C: Test device for the impact performance of shot bag

ANSI Z97.1 Safety Glazing Materials Used in Buildings - Safety Performance Specifications and Methods of Test - Clause 5.1: Impact Test

Application:

Determining the resistance of glazing materials to impact by the penetration method.

Test Frame:

Frame Size: 1900mm*1500mm*3570mm

Samples Size: 1930mm*864mm

Lift: Electric

Release: Auto

Maximum impact height: 1200mm (customized)

Rubber Pad Width: 15mm

Rubber Pad Thickness: 3mm

Rubber Pad Hardness: Shore A50

Impact Shot Bag:

Reinforced leather bag filled with chiller lead shot.

Technical Data:

Weight: 45kg±0.1kg 46kg±0.1kg

Height: 330mm ± 13mm

Max diameter: 250mm

Leather thickness: 1.5mm

Lead sand size: 2.5mm

Customized: 25kg /48kg


Company Contact:


  • Phone: 863353899615

  • Address: Northern Industrial Zone, Haigang District,, Qinhuangdao , Hebei , China

  • Email: Email


Published date: March 23, 2020

  • Business Description: Yuanchen supply nonstandard metal stamping, sheet metal working, sheet metal fabrication, laser cutting service, safety glass testing equipment, metal bracket, sheet metal bending, sheet metal forming etc.

    Customized OEM service and Free Sample Confirmed.

    Qinhuangdao Yuanchen Hardware Co., Ltd. is special in metal processing and nonstandard metal parts.

    Products are widely used in:

    Auto Parts

    Indurtry Parts

    Electronic parts

    Machinery Parts

    Cosplay metal parts

    Construction Fittings

    Photovoltaic hardware

    Sports equipment parts

    Medical device metal parts

    Cosplay metal parts

    Glass inspection equipment

    OEM/ODM

    Sheet metal fabrication/Nonstandard parts

    Metal laser cutting/Stamping/Bending/ Welding/Punching/Blanking /Forming

    Various of safety glass impact test equipment and parts

    Brackets/Gasket/Cab le hanger/Connector/Clip/Cla mp/Iron fittings/Hinge
