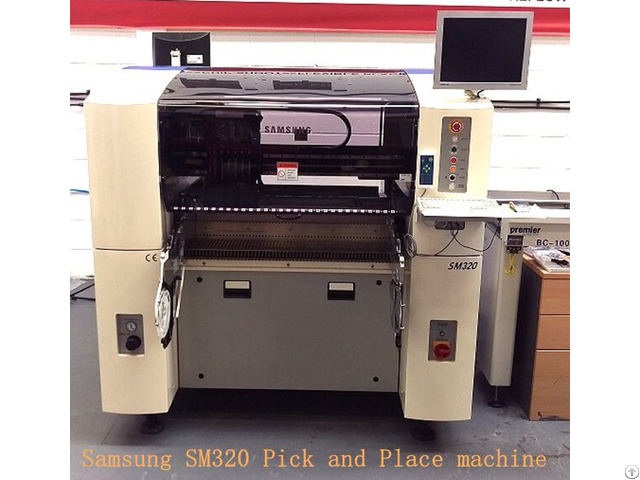

Samsung SM320 Pick and Place Machine

Chip theoretical speed ：18500CPH

PCB size 510 * 460

Mounting range 0402mm Chip ~ 55mm IC

Product description: Samsung SM320 Pick and Place Machine INQUIRY

samsung SM320 pick and place machine Products Description: used Samsung SM320 placement machine.

all equipment have good working condiction and competitive price! Chip theoretical speed ：18500CPH

Mounting range 0402mm Chip ~ □ 55mm IC

Placement accuracy plus or minus 0.03mm

PCB size 510 * 460-460 * 400mm

Equipment size 50 x 40 mm ~ 460 x 400mm Component identification method

FLYING VISION + STAGE VISION

Mounting efficiency

Flight camera recognition system

CHIP 1608 18500 CPH (IPC9850)

SOP 15000 CPH (IPC9850)

QFP 5500 CPH (IPC9850)

Fixed camera vision system

1.4 SEC / QFP208 (TRAY SUPPLY STANDARD) Components can be mounted range

FLYING VISION：1005 ~ □ 22mmIC (Option: 0603 ~ □ 12mmIC / 0402 ~ □ 7mmIC)

Mounting size：Standard stage vision (FOV 35) ~ □ 32mmIC (Pitch 0.4mmQFP / 0.75mmBGA / ~ □ 55mm (MFOV)) Standard stage vision (FOV 45) ~ □ 42mmIC (Pitch 0.5mmQFP / 1.0mmBGA / ~ □ 55mm (MFOV)) Standard stage vision (FOV 20)~ □ 17mmIC (Pitch 0.3mmQFP / 0.5mmBGA) Min.

lead pitch (QFP) FOV10 0.3mm (QFP) /0.65mm (BGA) Min.

Ball pitch (BGA)

FOV15

0.5mm (QFP) /0.75mm (BGA) FOV25

0.5mm (QFP) /0.75mm (BGA)

Max.

Height

H12mm (Flying camera standard)

H15mm (Flying camera standard)

PCB board size

smallest size

50 (L) * 40 (W) biggest size

460 (L) * 400 (W) / Option: 510 * 460, 640 * 510 PCB board thickness

0.38mm-4.2mm

Install feeder number 120ea / 112ea (docking cart)

Pressure and power consumption

power supply

AC220 / 220 / 240V (50 / 60HZ, 3 PHASE) (Option: 340/380 / 415V) Air pressure

5kg / ㎡, 260 NI / MIN

Machine weight

1800KG

Machine size

1650 L * 1680 D * 1530 H.

Samsung SMT SM320 is a universal Mounter, can produce small pieces of CHIP materials, but also can produce QFP material, suitable for small-scale production of independent products, but also can be used in high-life turret Mounter Line for multi-functional chip processing.

Equipment, small size, light weight, does not account for the place.

Popular SM320 - Highly Flexible, user friendly machine and highly reliable.

Full vision with 6 placement heads, each with individual illumination allowing 6 totally different components to be aligned on the fly.

Upward looking camera allowing placement of components down to 0.4mm Lead pitch.

Features:

Full Vision Mounter 19k cph

Vintage 2005

Fully Overhauled & Re-Painted

Large PCB Size 610mm x 400mm

01005 ~ 22mm Square by Flying Vision Alignment (01005 Camera as option)

0.4mm Lead pitch @ 32mm Square using Vision Alignment

0.3mm Lead pitch camera included

BGA/CSP/uBGA by Vision Alignment Feeder Capacity up to 120 x 8mm Feeders

IPC rated speed of 18'500cph (IPC9850 1608Chip)

Full set of nozzles to cover all component types

Large Component Library as Standard withmore than 1'800 component types

CAD Import facility as standard

Robust & Highly reliable Machine, fully supported by Elite 7 Installations Ltd.

Small Footprint for this Industrial Machine Additional Features:

Takes Standard Easy to use SM Clamp Feeders, colour coded for ease of identification

Great addition to any Existing line to add capacity or fine pitch

Machine will be fully overhauled by our Experts

Warranty offered and fully supported by Elite 7 Installations Ltd.

Latest Software will be loaded

Fully tested & rebuilt Keywords: China reflow oven, Pick and place machine factory, China chip mounter, SMT chip mounter Manufacturer, Lead Free Reflow Oven factory, wave soldering machine manufacturer, pick and place machine supplier.
