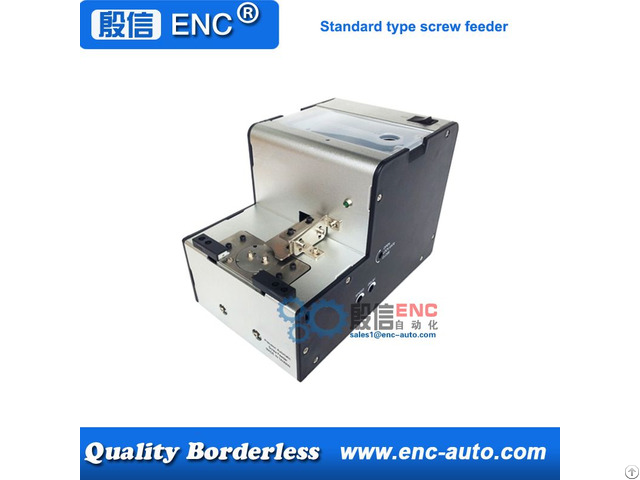

Screw Feeder - China

Features:

1)This set of screw feeder can be used as the screw feeding system of automation equipment, more stable than vibration bowl.

2)The design of separating rail allows free adjustment, It can meet Screw M1.0~3.0mm.

3)The special design of the structure makes feeding fast and stable.

4)Can be controlled by PLC of automation equipment, Signal connection terminal is at the bottom of machine.

5)The feeding and charging speed can be adjusted freely according to your requirement.

6)This machine is suitable for both special 1: 1 short screws and screws with washer.

7)This kind screw feeder is with small overall dimension, Occupies little space, and easy to move.

Common power supply: AC110~240V, 50/60Hz.

Model and specifications:

Model: ENC-1050T

Applicable screw thread diameter: M1.0~3.0 mm mm

Applicable screw head type: Standard screw head/Screw head with flat washer/screw head with spring washer/Screw head with flat washer and spring washer (Reference above)

Applicable material of screw head: All material screw

Applicable length of screw(Max.

): 20 mm

Applicable length of screw(Min.

): Single screw: Diameter x 1.0/Screw with spring washer: diameter + (0.5 x diameter)/screw with spring washer and flat washer: diameter + (1.1 x diameter)

Output speed: 2 pcs/second

Control mode: Machine control system / PLC

Input voltage: AC110~240V, 50/60Hz

Output voltage: 12VDC 1A

Feeding mode: Small rotary table

Overall dimension(L*W*H): 180*125*150 mm

Weight(kg): 2.5 kg

Accessories: Operation manual, AC controller, Hexagon wrench (Reference below)
