Sdi Arg Mems Single Axle Angular Rate Gyro - China

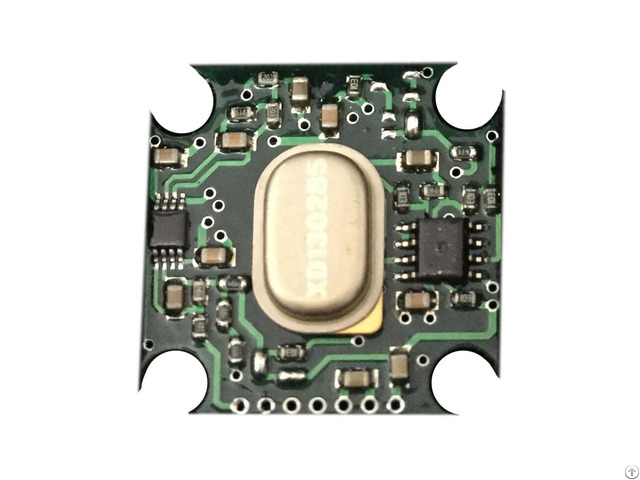

SDI-ARG-100LCG consists of MEMS single-axle angular rate gyro which is installed in a piece of PC board.

100 LCG is a complete unit, it can measure angular rate only by inputting the DC power.

This product is fit for applying in embedded system which has the features of flexible installation, low components prices and complex environment.

Features:

1 - Small size

2 - Light-weight

3 - Wide measurement range

4 - Great capacity of acceleration

5 - Adjusting bandwidth according to user's request.

Applications:

1 - Inertial measurement

2 - Inertial navigation

3 - Missile guidance and control

Performance

Axle 1

Range ( ° /s) ±100

Bias Voltage (V) 2.5±0.2

Sensitivity (mV/° /s) 20±2

Full Scale Output (V) 0.5 to 4.5

Bias Stability ( ° /s) ≤0.03

Nonlinearity (%FR) ≤0.05

Resolution ( ° /s) ≤0.05

Bias Variation of Total Temperature ( ° /s) ≤0.05

Bandwidth (Hz, -3dB) 80

Noise (° / s /√HZ) ≤0.004

Sensitivity (° / s / g) ＜0.05

Starting Time(ms) ＜1.5

Reliability 40000hours

Electrical

Input Voltage(V) 5

Operating Current(mA) ＜10

Environmental

Operating Temperature(℃) -40 to +80

Storage Temperature(℃) -55 to +100

Bump (g) 5

Physical

Dimension (mm) 29.4×29.4×10.7

Weight (g) 12
