Sdi F120 Single Axle Fiber Optic Gyroscope - China

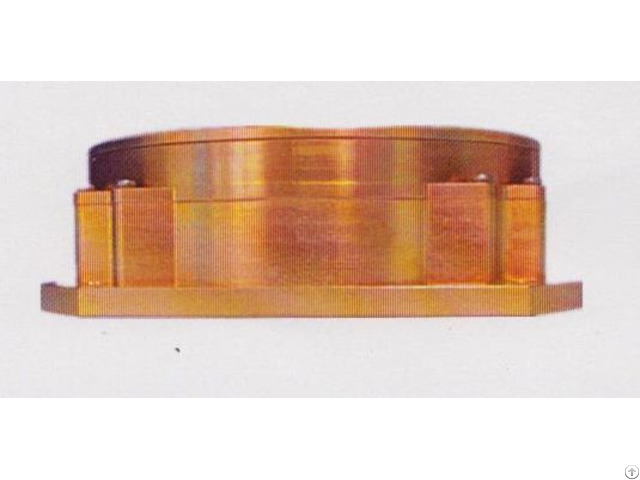

SDI-F120 is a single-axle fiber optic gyroscope with high accuracy that integrated optics, mechanics and electronics.

Based on Sagnac theory, it is consisted of EDSFS, optical fiber coupler, photoelectric detector, integrated optic phase modulator, fiber sensing coil, circuit and structure.

Inheriting classical design philosophy, adopting mature manufacturing technique, this product owns advantages of the same type FOG at home and abroad.

It's the first choice to proceeding high accuracy guidance and navigation controls.

Features:

High accuracy

High responsibility

Single 5V supply power

Low consumption

Have strong ability in anti-vibration and anti-shock

Quick-start

Simple interface

Easy to use

Application:

EO Turret / Airborne platform

Strap down inertial navigation system

Optic instrument / photographic apparatus

Platform stabilizing appliance

Navigator

North finder

Specification:

Range: -500°/s~+500°/s

Bias stability: ≤0.008°/h

Bias repeatability: ≤0.008°/h

Scale factor nonlinearity(1σ): ≤20ppm

Scale factor asymmetry(1σ): ≤20ppm

Scale factor Repeatability(1σ): ≤20ppm

supply voltage: Single +5v

Power Consumption: ≤5W

Bandwidth: ≥500Hz

Operating temperature: -40℃~+60℃

Dimension: 120×120×39mm3

Weight: ≤900g
