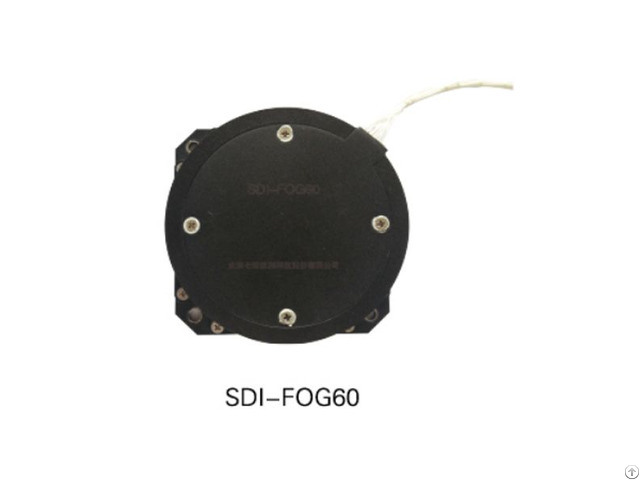

Sdi-fog-60 Fiber Optic Gyroscope - China

SDI-FOG series, applied theory of digital closed-loop, is the Fiber-optic gyro product whose bias stability is 0.02 degree to 3 degree per hour.

It’s the first choice to proceeding high accuracy guidance and navigation controls.

Features:

 High-accuracy

 Rapid response

 Low cost

 Digital output

 Firm and Stable

Anti-interference of electromagnetism

 Shock resistance

Performance:

Range -60°~60°

The Number of axle 1

Bias Stability ≤0.02°~0.03°/h 1σ

Bias Repeatability ≤0.05°/h 1σ

Bias Repeatability(Total Temperature) ≤0.35°/h

Scale Factor Nonlinearity ≤5×10-5

Scale Factor Repeatability ≤5×10-5

Scale Factor Repeatability

(Total Temperature) ≤2×10-4

Angular Random Walk(°/√h) ≤0.005

Bandwidth(Hz) ≥100

MTBF 20000h

Physical and Electrical:

Weight ＜350g

Dimension Ф134×48mm

Input Voltage ±5v

Power Consumption ≤3w

Starting Time ＜1s

Communication Port RS-422

Environment:

Operating Temperature -40℃~+60℃

Vibration 4.2g, 20~2000Hz

Bump, Acceleration 70g, half-sine, 6ms
