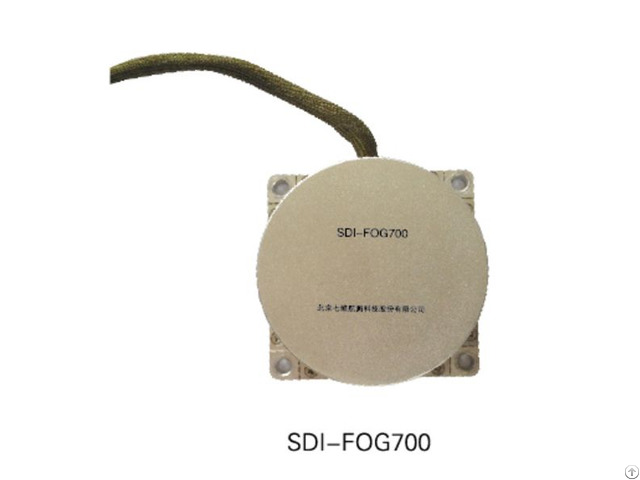

Sdi Fog 700 Fiber Optic Gyro Sensor For High Accuracy Guidance And Navigation Controls - China

SDI-FOG series, applied theory of digital closed-loop, is the Fiber-optic gyro product whose bias stability is 0.02 degree to 3 degree per hour.

It’s the first choice to proceeding high accuracy guidance and navigation controls.

Features:

 High-accuracy

 Rapid response

 Low cost

 Digital output

 Firm and Stable

 Anti-interference of electromagnetism

 Shock resistance

Performance：

Type: SDI-FOG700

Range: -700°~700°

The Number of axle: 1

Bias Stability: ≤1°/h 1σ

Bias Repeatability: ≤1°/h 1σ

Bias Repeatability

(Total Temperature): ≤2°/h

Scale Factor Nonlinearity: ≤10×10-5

Scale Factor Repeatability: ≤10×10-5

Scale Factor Repeatability

(Total Temperature): ≤3.5×10-4

Angular Random Walk(°/√h): ≤0.05

Bandwidth(Hz): ≥100

MTBF: 20000h

Physical and Electrical:

Weight: ＜550g

Dimension: Ф60×30mm

Input Voltage: ±5v

Power Consumption: ≤3w

Starting Time: ＜1s

Communication Port: RS-422

Environment:

Operating Temperature: -40℃~+60℃

Vibration: 4.2g, 20~2000Hz

Bump, Acceleration: 70g, half-sine, 6ms
