Se 25 28 30ktl D3 China - China

price: 1.00 Dollar US$

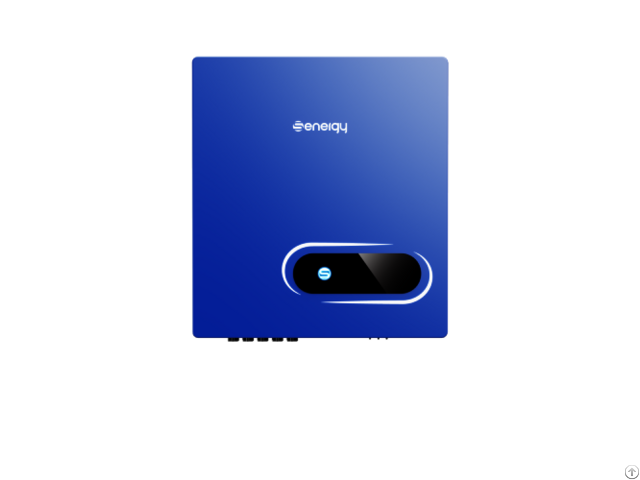

Se 25 28 30ktl D3 China

Products Photos Catalog 30ktl Photos Catalog

Features Maximum efficiency 98.6% String current 13.5A, compatible with high Power modules 150% PV configuration, 110% output overload Integarted type Ⅱ DC/AC SPD APP for local settings & display Remote configuration and upgrade More information please click here Model SE 25KTL-D3 SE 28KTL-D3 SE 30KTL-D3 Efficiency Max.

Efficiency 98.6% 98.6% 98.6% European Efficiency 98.3% 98.3% 98.3% Input(PV) Max.

Input Voltage 1000V Max.

PV configuration 150% Rated Input Voltage 620V Max.

Input Current 81A(2*40.5A) Max.

Short Circuit Current 90A(2*45A) Start Input Voltage 250V MPPT Operating Voltage Range 180V-960V Max.

Number of PV Strings 6(3/3) No.

of MPPTs 2 Output(Grid) Rated AC Active Power 25, 000W 28, 000W 30, 000W Max.

AC Apparent Power 27, 500VA 30, 800VA 33, 000VA Max.

AC Active Power (PF=1) 27, 500VA 30, 800W 33, 000W Max.

AC Output Current 3*40A 3*45A 3*48A Rated AC Voltage 380V/400V, 3W+N+PE AC Voltage Range① 277V-520V(adjustable) Rated Grid Frequency 50Hz/60Hz THDI <3%(Rated Power) DC Current Injection <0.5%In Power Factor > 0.99 Rated power (Adjustable 0.8 LG – 0.8 LD) Protection DC switch Support Anti-islanding protection Support AC overcurrent protection Support AC short circuit protection Support DC reverse connection Support Surge Arrester DC Type Ⅱ, AC Type Ⅱ Insulation detection Support Leakage current protection Support General Topology Transformerless IP Rating IP65 Night Self Consumption <1W Cooling Fan cooling Operating Temperature Range -25℃-60℃ Relative Humidity Range 0-100% Max.

Operating Altitude 4000m Noise <50dB Dimensions (W*H*D) 555mm*446mm*270mm Weight 41Kg HMI & COM Display Wireless & APP +LED, LCD(Optional) Communication RS485, WiFi /GPRS/4G/LAN(Optional) Certification Safety IEC62109-1, IEC62109-2 EMC EN 61000-6-2/4 Grid Code IEC61727/62116 Warranty 5 Years Supports export power control


Company Contact:


  • Phone: 13602775308

  • Address: Room 405, Convergence Innovation Park, No.2, Liuxian Avenue, District 68, Baoan District, Shenzhen, Shenzhen , Shenzhen , China

  • Email: Email


Published date: September 2, 2022

  • Business Description: Shenzhen Senergy Technology Co., Ltd. is a high-tech PV and solar inverter company with strong innovation power from our world-class R&D team, outstanding supply chain and manufacturing capability supported by our parent company Asia Power Devices Inc.

    (APD).

    We are committed to providing our customers with newest technologies, highest quality and first class service experience.
