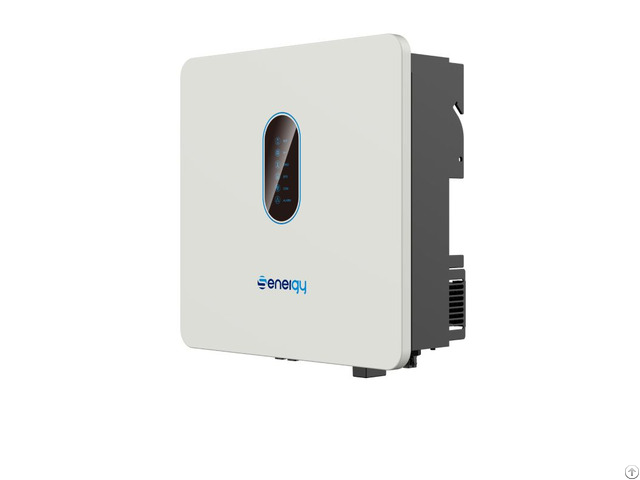

Se 4 6 5 6kac China - China

Features Max Charge/Discharge efficiency 94% Convenient to retrofit existing grid-connected systems increase the proportion of spontaneous use With BMS system to ensure high battery life Natural cooling design Compatible with lead-acid batteries and lithium battery energy Model SE 4K6AC SE 5KAC SE 6KAC Efficiency Max.

efficiency (Max.

charge/discharge) 94.0% Input (BAT) Compatible battery type Lithium-ion/Lead-acid Nominal battery voltage 48V Battery voltage range 40V-60V Max.

charge/discharge current 100A/100A 100A/100A 120A/120A Max.

charge/discharge power 5000W/5000W 5000W/5000W 6000W/6000W Lithium battery charge curve Self-adaption to BMS Output (Grid) Nominal AC output power 4600W 5000W 6000W Max.

AC output apparent power 4600VA 5500VA 6000VA Max.

AC output power (PF=1) 4600W 5500W 6000W Max.

AC output current 22A 25A 27.2A Rated AC voltage 220V AC voltage range 150V-300V (Adjustable) Rated grid frequency 50Hz/60Hz AC frequency range 45Hz-55Hz/55Hz-65Hz (Adjustable) Grid connection Single phase Power factor > 0.99 @rated power (Adjustable 0.8 LD -0.8 LG) THDI <3% (Rated Power) Output (Back up) Nominal output voltage 230V Nominal output frequency 50Hz/60Hz Nominal output power 4600W 5000W 5000W Nominal output current 20A 21.7A 21.7A Transfer time 10ms(typ), 20ms (max) THDV <3% @100% R Load Protection Protection category Class I Anti-islanding protection Support AC overcurrent protection Support AC short circuit protection Support Surge Arrester AC Type III Leakage current protection Support AC overvoltage category III General Max.

operation altitude 4000m Noise emission <35dB Ingress protection degree IP65 Operating temperature range -25℃~60℃ Relative humidity 0~100% Cooling concept Natural Cooling Mounting Wall bracket Dimensions (W*H*D) 515mm*485mm*175mm Weight 20Kg Battery connection way Dedicated DC connector AC connection way (grid & back up) Dedicated AC connector HMI & COM Display LED+APP Communication interface RS485/CAN (for BMS), RS485, USB, DRM/RS485 (for Meter), Optional: WiFi/GPRS/LAN Certification Grid VDE-AR-N4105, IEC 61727/62116, AS 4777.2, EN 50549-1, G99, CEI 0-21, NRS 097-2-1 Safety IEC 62040-1, IEC 62477-1 Warranty 5 Years/10 Years (Optional)
