Seamless Connection Outdoor Led Video Wall Anti Ultraviolet For Illumination - China

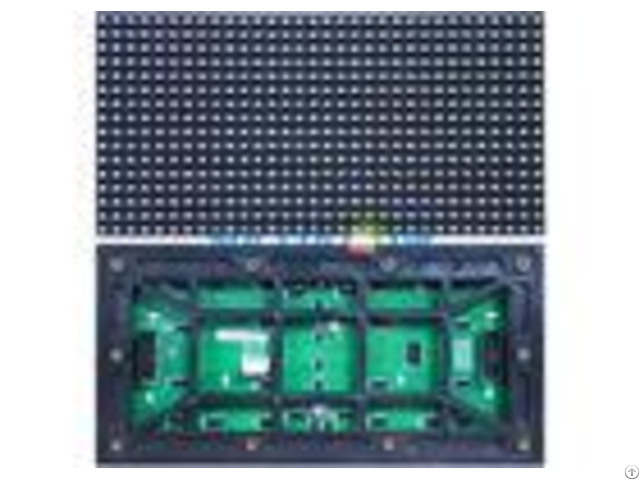

We produce indoor outdoor and rental led module and led display P1.25/P1.388/P1.5625/P1.6 67/P1.875/P1.923/P2/P2.5/ P3/P3.91/P4.81 P4/P5/P6/P7.62/P8/P10/P12 /P16 P5outdoor led display screen module SS8 outdoor full-color technology parameters - - - - Unit Module | Item | Parameter | Model Number | SF-SS8-5-A | Module size | 320mm*160mm | Pixel pitch | 8mm | Pixels Density | 15625Pixel /m2 | Pixel configuration | 1R1G1B | LED Package mode | SMD3535 | Pixel resolution | 40dots(W)*20dots(H) | Max Power | 30W | Module thickness | 22mm | Weight | 0.37kg | Drive type | Constant drive | Scan mode | 1/5 | Port type | HUB75-A | Brightness of white balance | 70007500cd/m2 | Module pictures | | Cabinet | Dimension | 960mm*960mm*100 mm | Monomer Module Number | 24pcs | Power supply | 5V/40A*4 pcs | Thermal discharge | fan 2pcs | Pixel per cabinet | 120mm*120mm | Best viewing distance | 8M15M | Best viewing angle | 120(W) 110(H) | Temperature | storage: -35+85 working: -20+50 | Relative humidity | 10%-95% | Thickness | 122mm | Power | Working voltage | AC220V10% | Average Power consumption | 330W/ | Max.

Power consumption | 1100W/ | Current | 20mA(single LED) | Control system | CPU | Pentium4 or above P4 | Operation system | WIN98/2000/NT/XP/WIN7 | Control method | Synchronization | Main technical parameter | Driving device | Constant drive IC | Refresh frequency | 1200HZ | Grey scale/colors | 4096, 16.7M 4096gray level/16.7M colors | MTBF | 9000hours | ower switch | Automatic switch | Display Mode | 800*600/1024*768 | - - - - Project Cases Company information SHENZHEN SOL COLUR DISPLAY CO., LTD. was established in December 2012, Is a leading LED display applications products and solutions provider, Specialized in LED research and development, manufacturing.

Sales and servic, Dedicated to providing high-quality, high-performance LED applications and solutions for professional channel customers and end-users at home and abroad.

Our products have been widely used both at home and abroad.

Since its foundation, we have become one of the best LED product and solution providers in the country through our unremitting efforts and have won the industry's highest recognition The development of the company so far, the sales outlets throughout the country, the export products exported to more than 10 countries and regions, 3C, FCC, CE.

IFA, IP65, IP68, IS9001, ROSH.

AAA and other qualifications, product testing reports, patent certificate
