Secondary Ud Cable Astm - China
price: contact company for price
Voltage
600V Construction

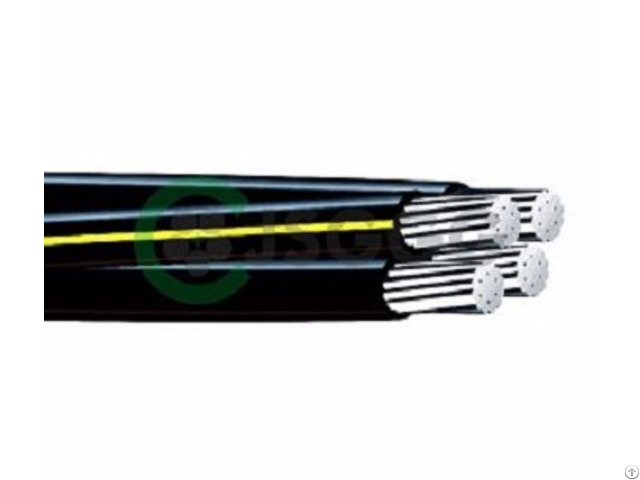

Sino-cables type URD are manufactured with compacted 1350 aluminum or 8000 series aluminum alloy conductor insulated with black XLPE.
Two or three insulated conductors and an neutral wire are cabled together.
Single core, duplex, triplex, quadruplex are available.
Standard
ASTM B231, B800, UL854, ICEA S-76-474, or other standards required by customers.
Features
Max permissible continuous operating temperature of conductor shall not exceed 90°C.
Applications
Sino cables type URD is used for secondary distribution and underground service at 600 volts or less, either direct burial or in ducts.
Package
coil, steel/wooden reel, wooden reel or steel reel.
Company Contact:
- Posted By: Jiangsu Sanqi Cable & Wire Co., Ltd,
- Phone: 0513-68971818
- Address: the west end of Yongtong Avenue, Rudong , Jiangsu , China
- Email:
Published date: June 21, 2017
- Business Description: Sino-Cable manufacture cables with AA 8000 series aluminum alloy cable, power cable, rubber cable, solar cable, xhhw-2, use-2, ser/seu, MC, MHF, UD Wire Cable.
