Sg01m 18iso90 Broadband Sic Based Uv Photodiode A = 0 20 Mm2 - China

price: check with company for price

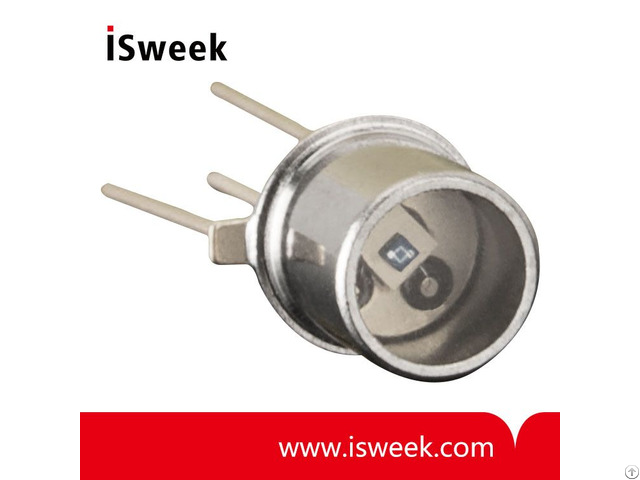

SG01M-18ISO90

Broadband SiC based UV photodiode A = 0.20 mm2

/

Properties of the SG01M-18ISO90 UV Photodiode

• Broadband UVA+UVB+UVC, PTB reported high chip stability

• Active Area A = 0.20 mm2

• TO18 hermetically sealed metal housing, two isolated pins in a circle

• 10mW/cm2 peak radiation results a current of approx.

2600 nA

/

SG01M-18ISO90 UV Photodiode Specifications Typical Responsivity at Peak Wavelength: 0.130/AW

Wavelength of max.

Spectral Responsivity: 280nm

Responsivity Range: 221 … 358nm Active Area: 0.20mm2

Dark Current (1V reverse bias): 0.7fA

Capacitance: 50pF

Short Circuit (10mW/cm2 at peak): 2600nA

Temperature Coefficient: < 0.1%/K Operating Temperature: -55 ~ +170°C

Storage Temperature: -55 ~ +170°C

Soldering Temperature (3s): 260°C

Reverse Voltage: 20V


Company Contact:


  • Phone: 86-0755-83289036

  • Address: 16 Floor, Building #3, Zhongke Mansion, Gaoxin South 1st Rd, Hi-Tech Park, Nanshan, Shenzhen , Guangdong , China

  • Email: Email

Published date: December 7, 2018

  • Business Description: ISweek has been devoted to providing one-stop product distributing and purchasing solution and service for purchasers, suppliers, traders and manufactures from all over the world in industrial science and technology industry.

    We are able to provide high-quality original products and thorough technical support and after-sale service to our member users.
