Sg01m C5 Uvc Only Sic Based Uv Photodiode With Standard Dvgw W294 - China
price: check with company for price

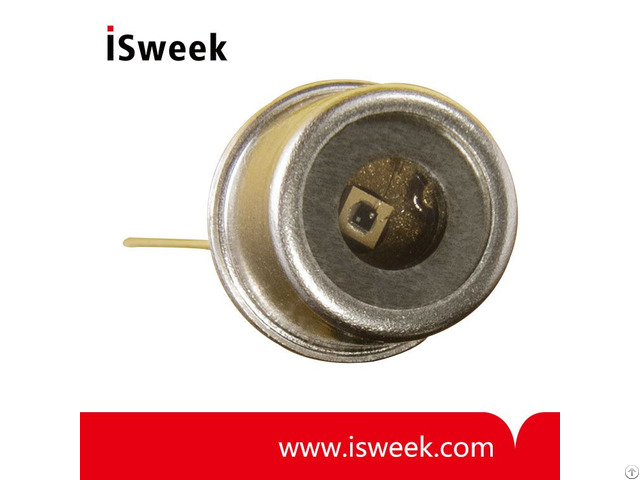

SG01M-C5 UVC-only SiC based UV photodiode A = 0.20 mm2
/
Properties of the SG01M-C5 UV Photodiode
• UVC-only sensitivity, compliant with DVGW W294, PTB reported high chip stability
• Active Area A = 0.20 mm2
• TO5 hermetically sealed metal housing, 1 isolated pin and 1 case pin
• 10mW/cm2 peak radiation results a current of approx.
2400 nA
/
SG01M-C5 UV Photodiode Specifications
Typical Responsivity at Peak Wavelength: 0.12/AW
Wavelength of max.
Spectral Responsivity: 275nm
Responsivity Range: 225 - 287nm
Active Area: 0.20mm2
Dark Current (1V reverse bias): 0.7fA
Capacitance: 50pF
Short Circuit (10mW/cm2 at peak: 2400nA
Temperature Coefficient: < 0.1%/K
Operating Temperature: -25 ~ +85°C
Storage Temperature: -40 ~ +100°C
Soldering Temperature (3s): 300°C
Company Contact:
- Posted By: Shenzhen week Technology Ltd
- Phone: 86-0755-83289036
- Address: 16 Floor, Building #3, Zhongke Mansion, Gaoxin South 1st Rd, Hi-Tech Park, Nanshan, Shenzhen , Guangdong , China
- Email:
Published date: August 24, 2018
- Business Description: ISweek has been devoted to providing one-stop product distributing and purchasing solution and service for purchasers, suppliers, traders and manufactures from all over the world in industrial science and technology industry.
We are able to provide high-quality original products and thorough technical support and after-sale service to our member users.
