Sg01s 5 Broadband Sic Based Uv Photodiode A = 0 06 Mm2 - China

price: check with company for price

Sg01s 5 Broadband Sic Based Uv Photodiode A = 0 06 Mm2

Products Photos Catalog Sg01s Broadband Sic Photos Catalog

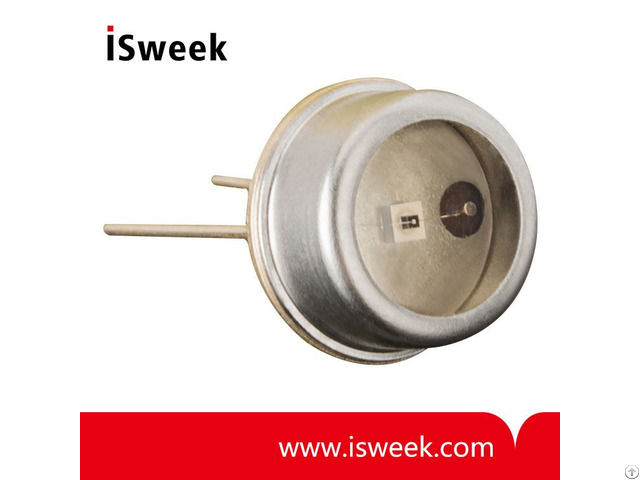

SG01S-5

Broadband SiC based UV photodiode A = 0.06 mm2

/

Properties of the SG01S-5 UV Photodiode

• Broadband UVA+UVB+UVC, PTB reported high chip stability

• Active Area A = 0.06 mm2

• TO5 hermetically sealed metal housing, short cap, 1 isolated p

• 10mW/cm2 peak radiation results a current of approx.

780 nA

/

SG01S-5 UV Photodiode SpecIfication

Typical Responsivity at Peak Wavelength: 0.130/AW

Wavelength of max.

Spectral Responsivity: 280nm

Responsivity Range: 221 - 358nm Active Area: 0.06mm2

Dark Current (1V reverse bias): 0.2fA

Capacitance: 15pF

Short Circuit (10mW/cm2 at peak): 780nA

Temperature Coefficient: < 0.1%/K Operating Temperature: -55 ~ +170°C

Storage Temperature: -55 ~ +170°C

Soldering Temperature (3s): 260°C

Reverse Voltage: 20V


Company Contact:


  • Phone: 86-0755-83289036

  • Address: 16 Floor, Building #3, Zhongke Mansion, Gaoxin South 1st Rd, Hi-Tech Park, Nanshan, Shenzhen , Guangdong , China

  • Email: Email

Published date: November 14, 2018

  • Business Description: ISweek has been devoted to providing one-stop product distributing and purchasing solution and service for purchasers, suppliers, traders and manufactures from all over the world in industrial science and technology industry.

    We are able to provide high-quality original products and thorough technical support and after-sale service to our member users.
